Concealer Filling Machine

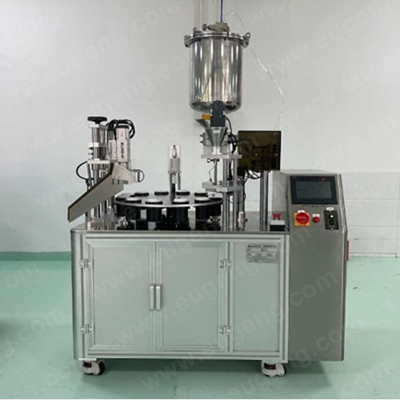

Model EGMF-01 Concealer Filling Machine is a semi-automatic filling and capping machine,rotary type design and widely applied for cosmetic liquid filling and capping.

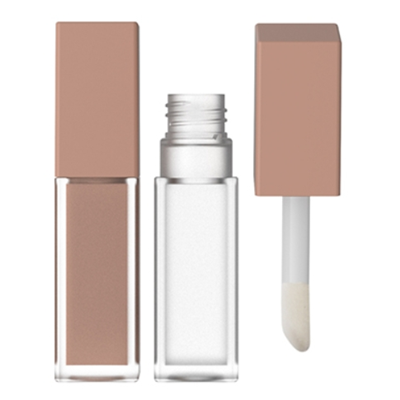

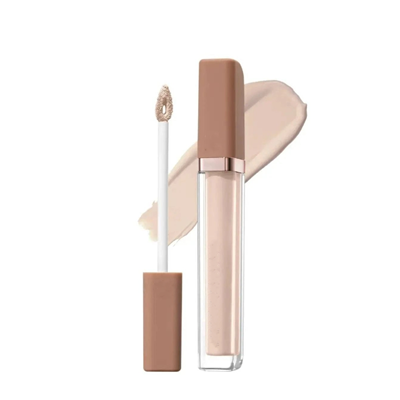

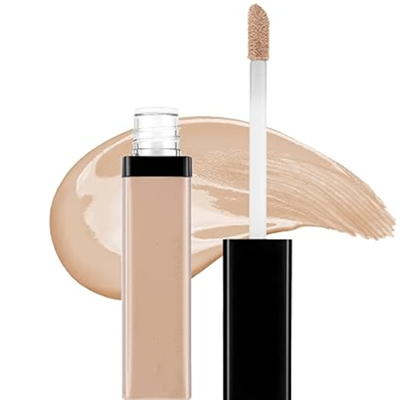

Especially for liquid concealer,liquid foundation,liquid eyeshadow,liquid lipstick,lip gloss,lip cream,lip oil etc..
·1 set 30L pressure tank
· Piston controlled dosing pump, and with servo motor driving,while filling while tube moving down
. Machine with sucking back function so that prevent dripping
·Accuracy +-0.03g
·Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over

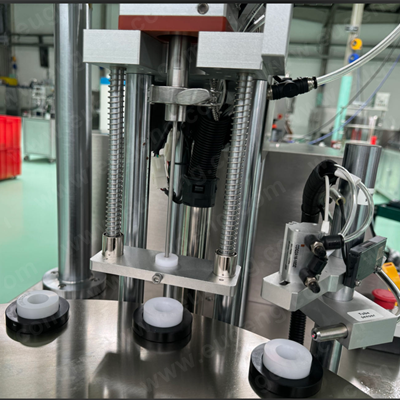

·Servo-motor capping unit with adjusted torque,capping speed and capping height also adjustable

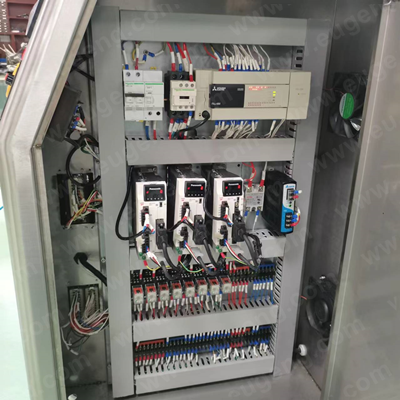

·Touch screen control system with Mitsubishi brand PLC
Servo motor Brand: Panasonic Original: Janpan
Servo motor control the capping, and torques can be adjusted, and reject rate is less than 1%
Concealer Filling Machine Wide application :
For filling liquid concealer,liquid foundation, liquid lipstick,liquid eyeshadow,liquid powder,lip gloss,mascara,eyeliner,nail polish,cosmetic liquid foundation,serum,essential oil,perfume,teeth whiten gel etc..
Concealer Filling Machine Puck Customized
POM(according to the diameter and shape of tube)
Concealer Filling Machine Capacity
30-35pcs/min
Concealer Filling Machine Optional
25L Heating mixing filling tank
Extra one tank
Extra one set of piston and valve for different color change and fast cleaning

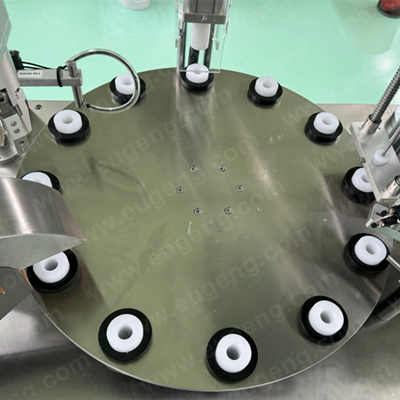

Rotary type with 12 puck holders

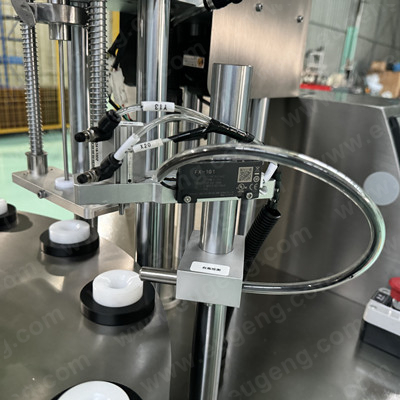

Tube sensor and reverse direction check
Single nozzle filling

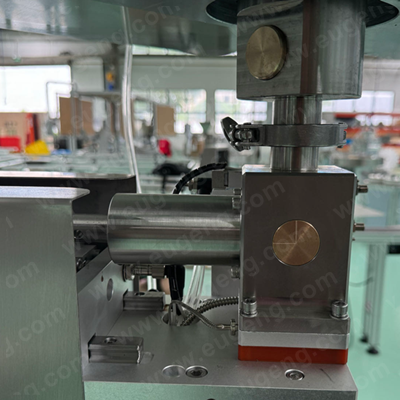

Piston filling system,easy cleaning

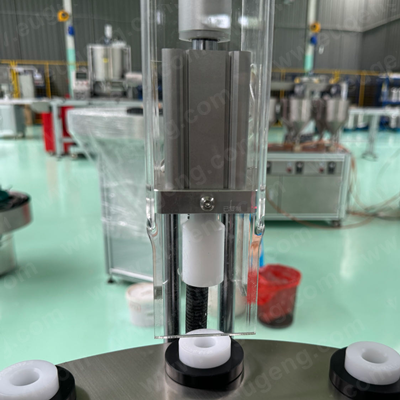

Press wiper by air cylinder

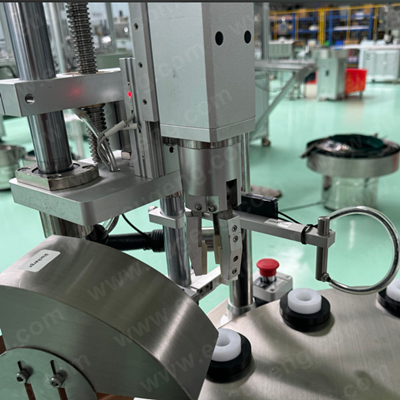

Servo screw capping,torque adjustable
Automatic discharge by air cylinder
Mitsubishi PLC,Panasonic servo,SMC air
