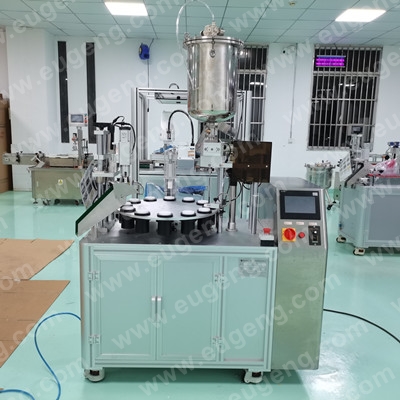

Rotary Type Lip Gloss Filling Machine
Model EGMF-01 lip gloss filling machine is a semi-automatic filling and capping machine design for the production of lip gloss,mascara eyeliner,nail polish,cosmetic liquid foundation,perfume card,teeth whitening pen etc..suitable for filling both liquid and high viscosity paste gel ,filling and capping round bottles,square bottles and some irregular bottles.
Lip gloss
Mascara
Eyeliner
·1 set 30L pressure tank with inner plug for high viscosity materials
· Piston controlled dosing pump, and with servo motor driving , filling while tube moving down
. Machine with sucking back function so that prevent dripping
·Accuracy +/-0.5%
·Filling unit designed for easy strip-down cleaning and re-assembly to facilitate
quick change over
·Servo-motor capping unit with adjusted torque,capping speed and capping height also adjustable
·Touch screen control system with Mitsubishi brand PLC
Servo motor Brand: Panasonic Original: Janpan
Servo motor control the capping , and torques can be adjusted , and reject rate is less than 1%
Lip gloss filling machine wide application :
Widely used for filling lip gloss,mascara,eyeliner,nail polish,cosmetic liquid foundation,serum,essential oil,perfume,teeth whiten gel etc..
Lip gloss filling machine puck customized
POM(according to the diameter and shape of bottle)
Lip gloss filling machine Capacity
25-30pcs/min
Lip gloss filling machine Optional
Can be equipped with heating and mixing functions for tank
Extra one tank
Extra one set of piston and valve for fast product change and cleaning
| Model | EGMF-01 |
| Production type | rotary type |
| Capacity | 1200-1500pcs/h |
| Control type | Servo motor& Air cylinder |
| No.of nozzle | 1 |
| No. of pucks | 12 |
| Pressure tank | 30L/set |
| Display | PLC |
| No. of operator | 2 |
| Power consumption | 2.5kw |
| Dimension | 1.2*0.75*1.8m |
| Weight | 350kg |
| Air input | 4-6kgf |

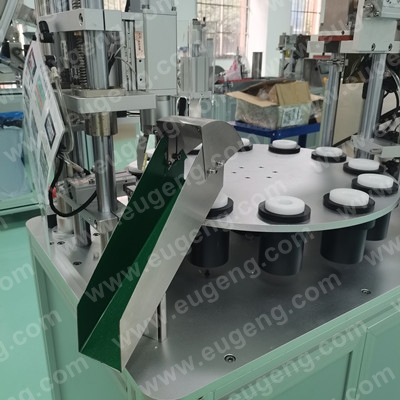

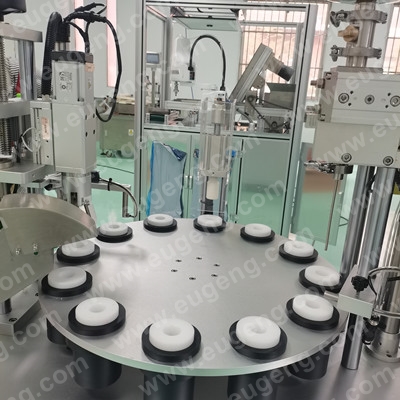

Rotary table with 12 puck holders
Sensor for checking tubes no tube no filling

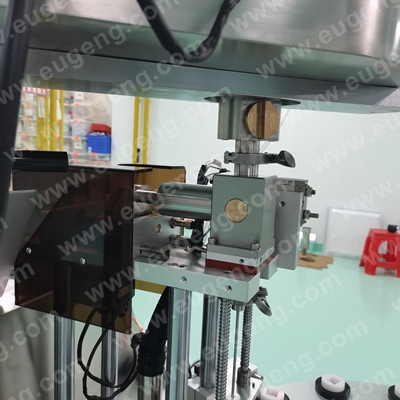

Filling nozzle with guider prevent nozzle broken

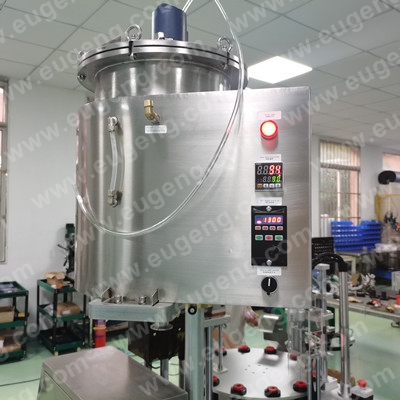

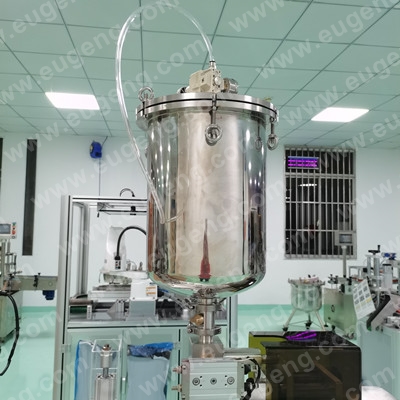

30L pressure tank

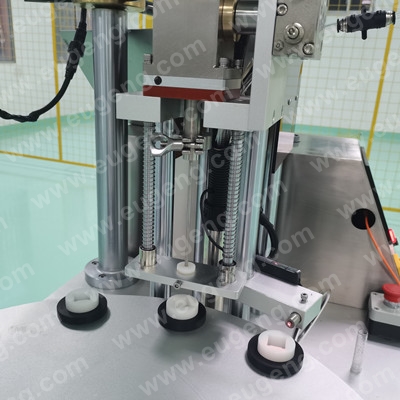

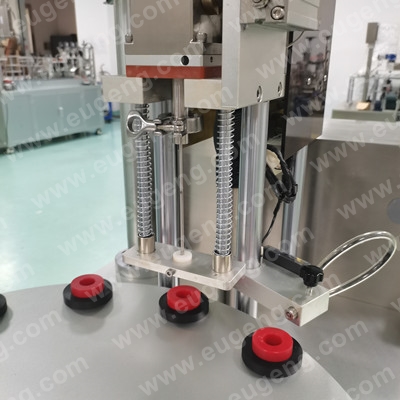

Piston filling system,driven by servo motor
Pressing wiper by air cylinder

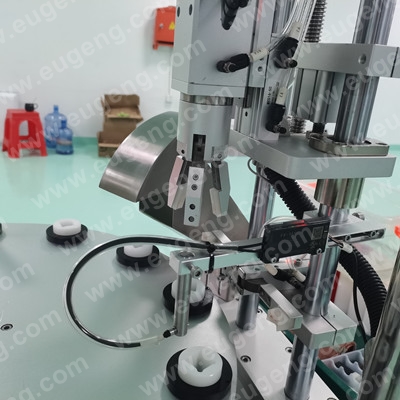

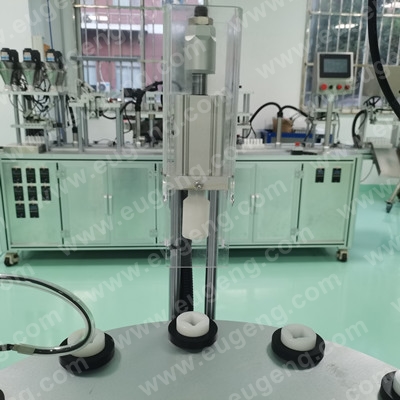

Servo motor control capping,capping torque adjustable
Automatic discharge by air cylinder

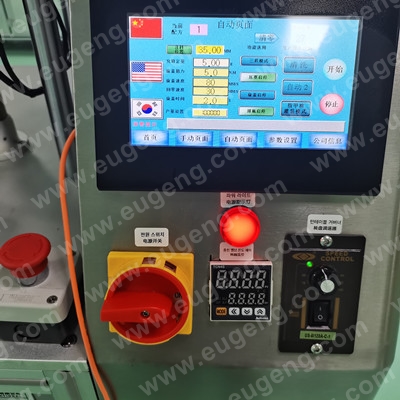

Mitsubishi PLC touch screen

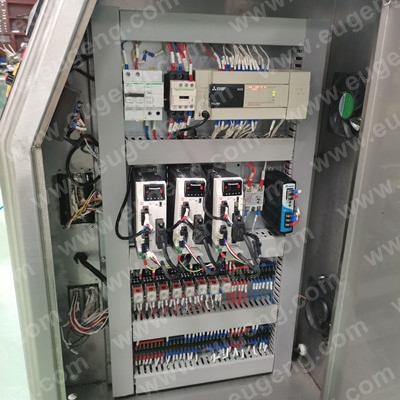

Panasonic servo motor, SMC Pneumatic components
Rotary table speed is adjustable
Heating tank as option for hot filling product
Eugeng is a professional and creative company of machinery for cosmetics in Shanghai China.We design,manufacturer and export cosmetics machines,such as lip gloss mascara&eyeliner filling machines,cosmetics pencil filling machines,lipstick machines,nail polish machines,powder press machines,baked powder machines,labelers,case packer and other cosmetics machinery and so on.
