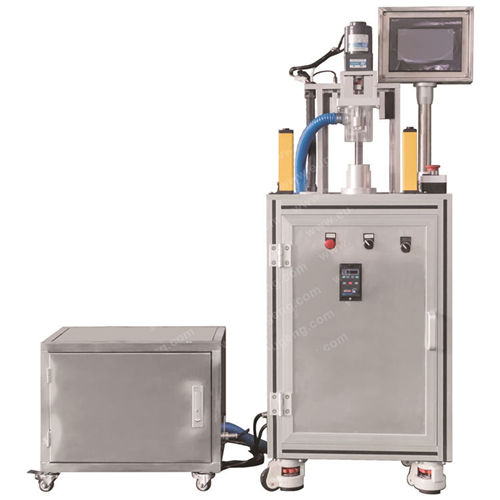

Baked Powder Production Line

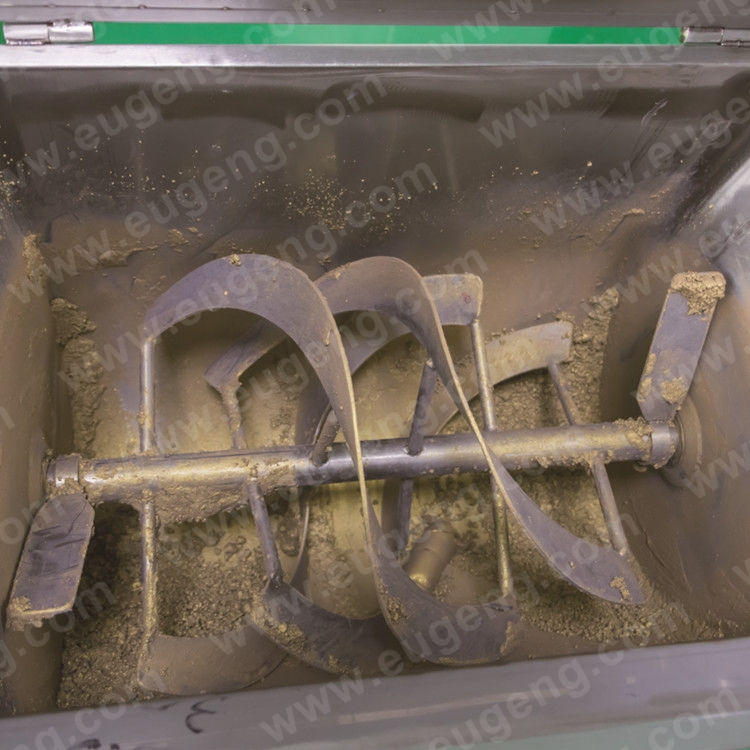

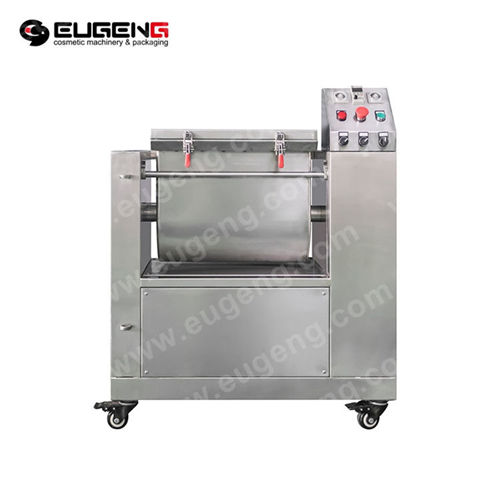

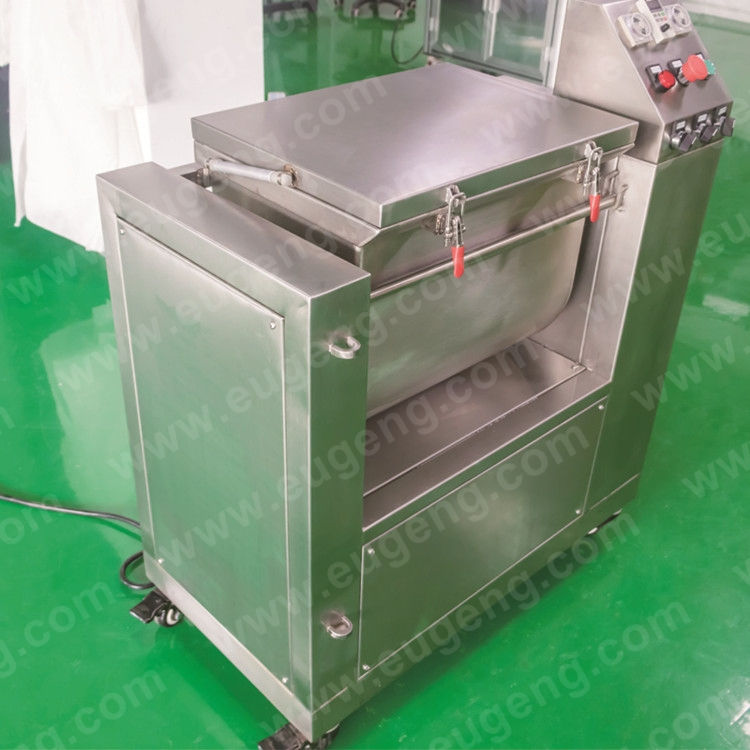

Baked powder mixing machine for mixing wet powder raw material firstly.
Target product
bake powder raw material
bake powder raw material
baked eye shadow
Capacity 20kg
Feature
1 set 20L mixing tank
Mixing speed can be adjustable
Mixer scrapper easily take off and re assembly
CW time and CCW time is adjustable

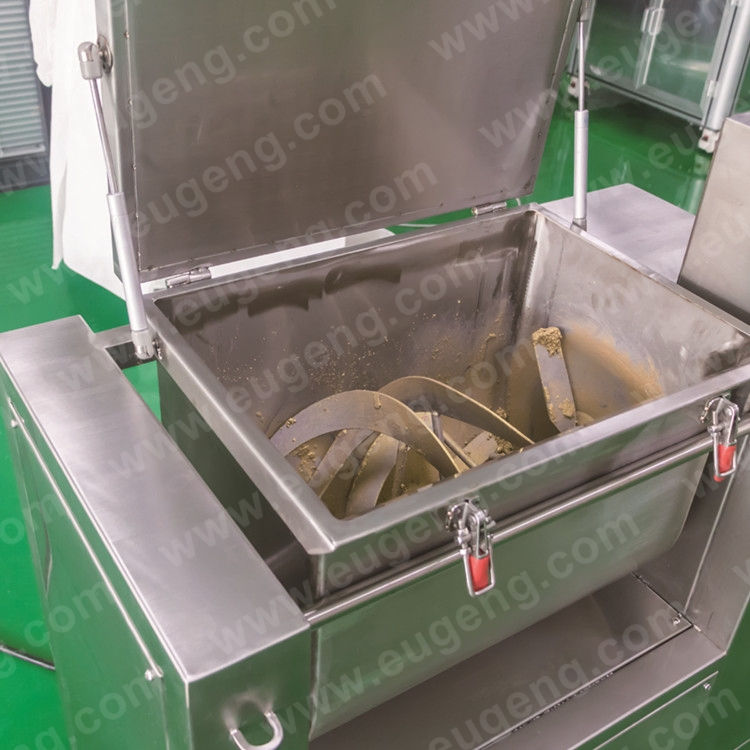

Tank can 90 degree open for discharge easily
Manul mixing optional according to request
Standard Specifications
| Model No. | EGBM-20 |
| Production type | MIixer |
| Output capacity/hr | 20kg/tank |
| Power consumption | 1.5kw |
| Dimension | 0.8×0.55×1.35m |
| Weight | 160kgs |
Machine Detail As Following Photo

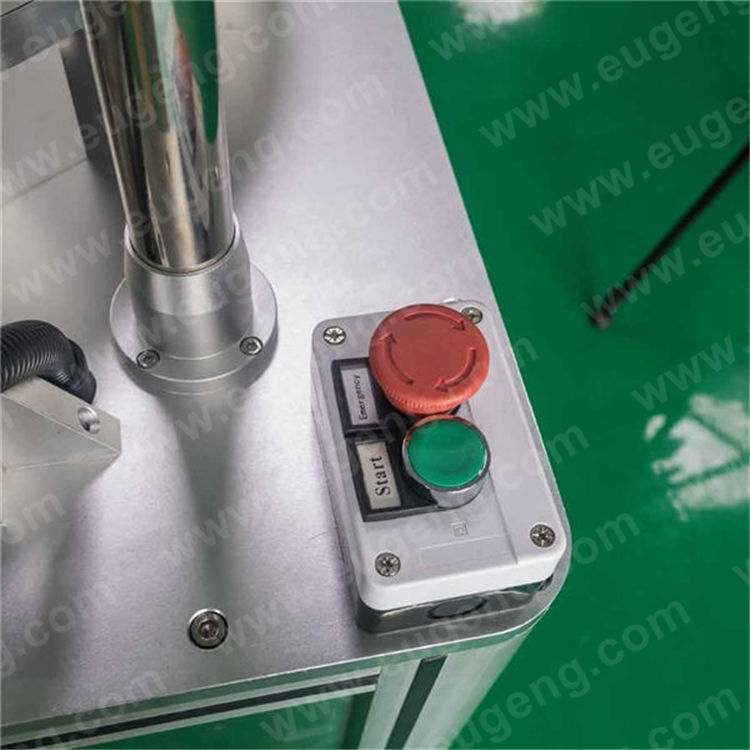

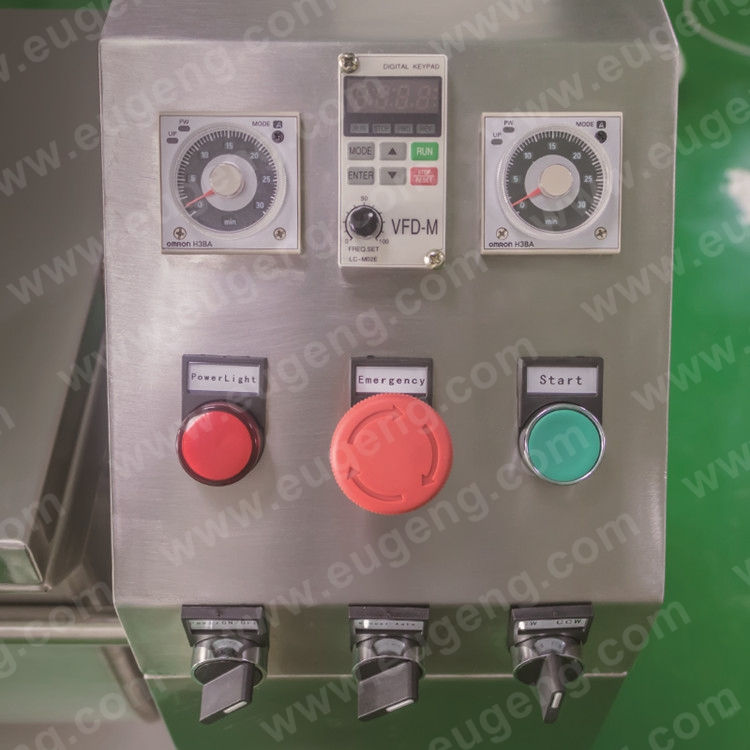

Operation easily

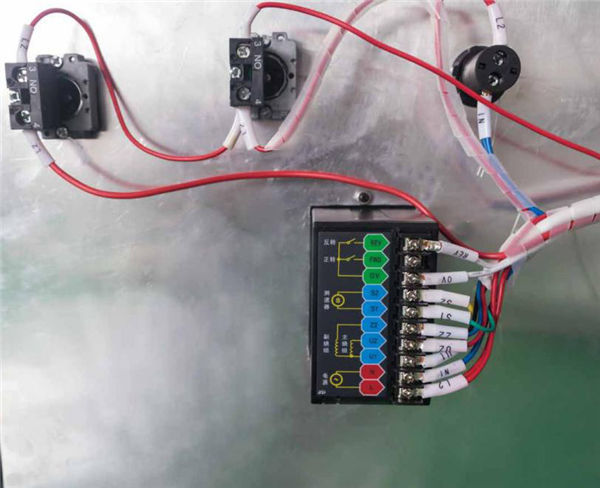

Mixer speed is adjustable
Mixer scrapper easilytake off for cleaning
SUS304 stainess steel
Baked powder mixing machine You tube Video link

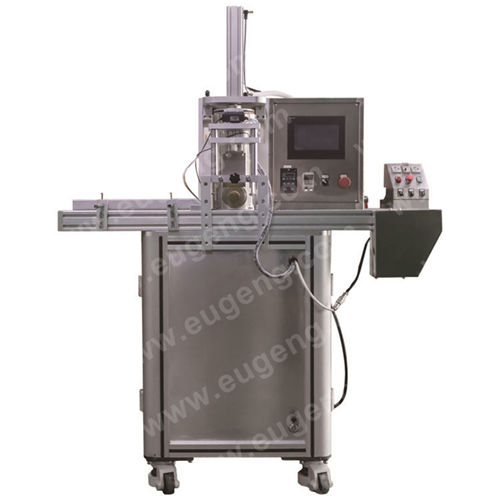

Baked powder extrusion machine after mixing
Mold Extrusion nozzle and screw
Capacity 30-35pcs/min
Feature
1 set 10L tank
Screw from back side and pressing from top
Sensor control the extrusion powder length, and it can be adjusted so that control the powder weight Automatic cutting
3 Type working model for felixable optional Operation with touch screen
Standard Specifications
| Model No. | EGBE-01 |
| Production type | Extrusion |
| Output capacity/hr | 1800-2100pcs |
| Control Type | Motor & Air cylinder |
| No. of nozzle | 1 |
| Vessel volume | 10L/set |
| Display | PLC |
| No. of operator | 1 |
| Power consumption | 2 kw |
| Dimension | 1.2×0.8×1.75m |
| Weight | 250kgs |
| Air input | 4-6 kgf |
Machine Detail As Following Photo

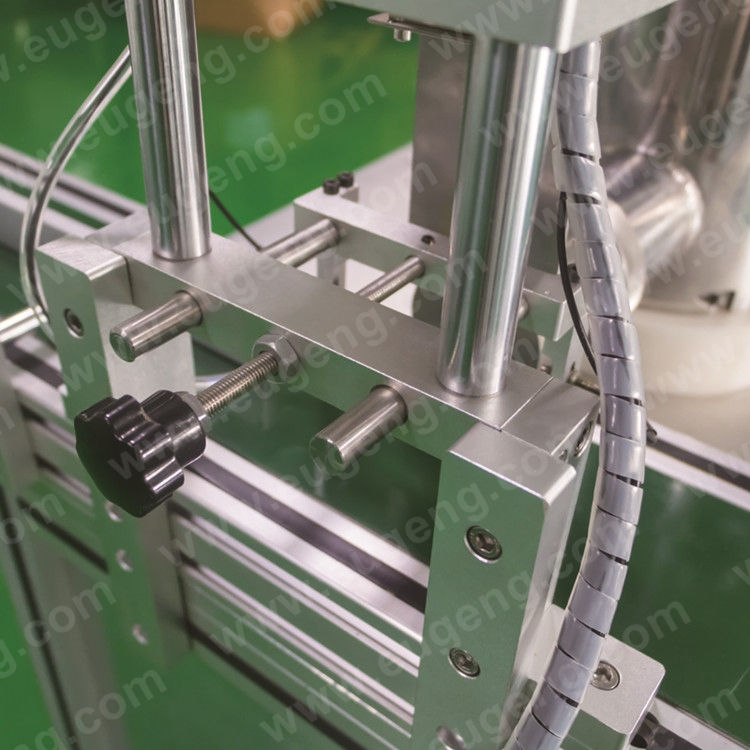

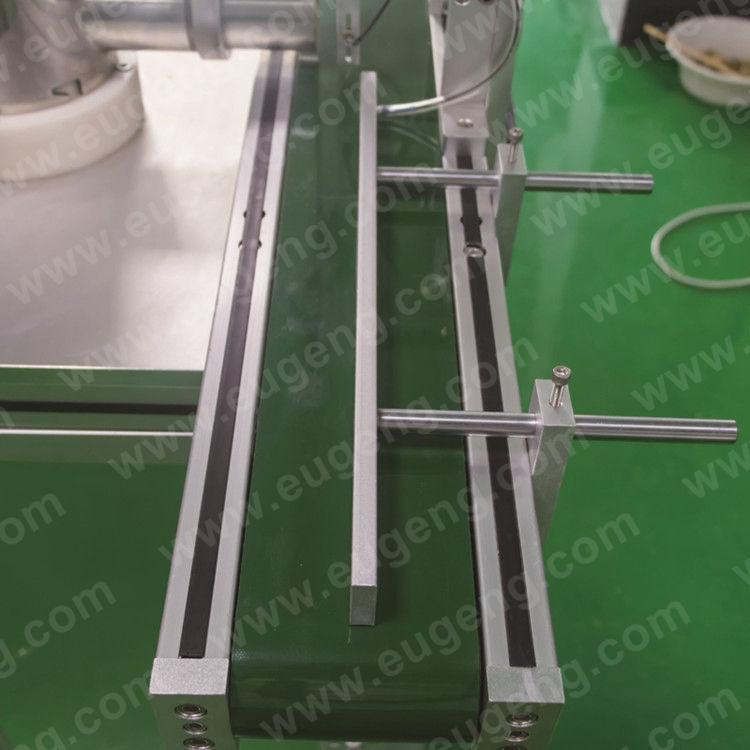

Guider can be adjusted
Cutting knife

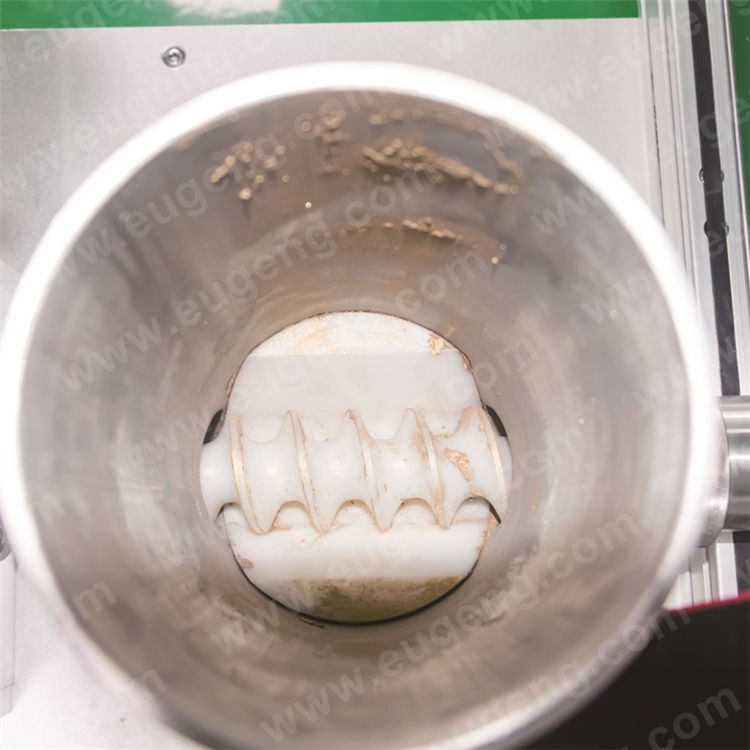

Tank

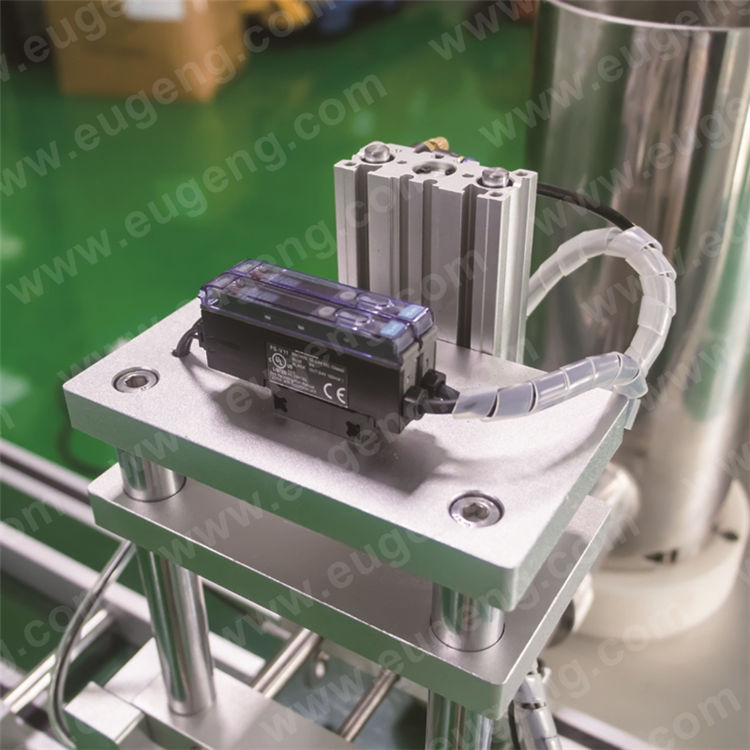

Keyence sensor for easy adjustment
Extrusion powder weight adjusted

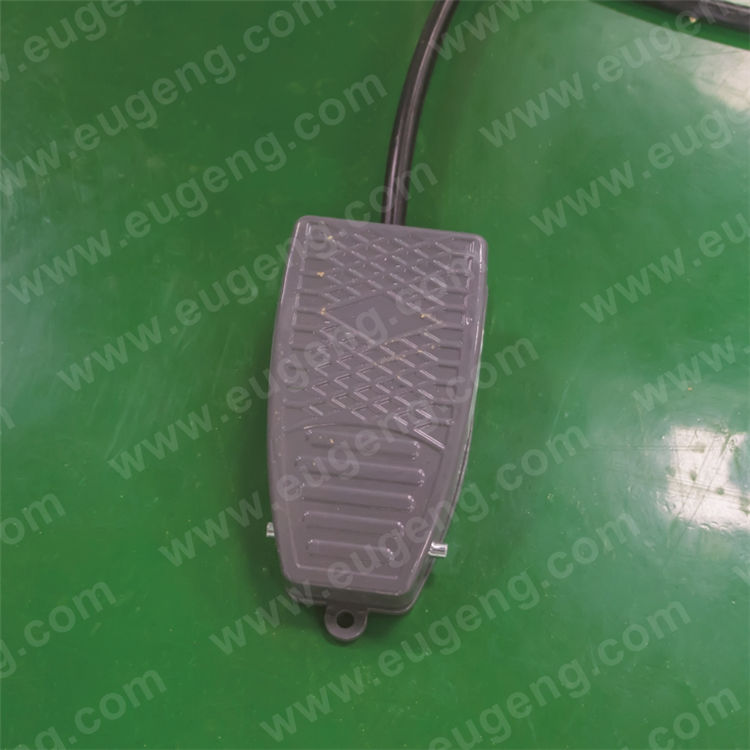

Foot switch
Touch screen operation
Bulk press from top

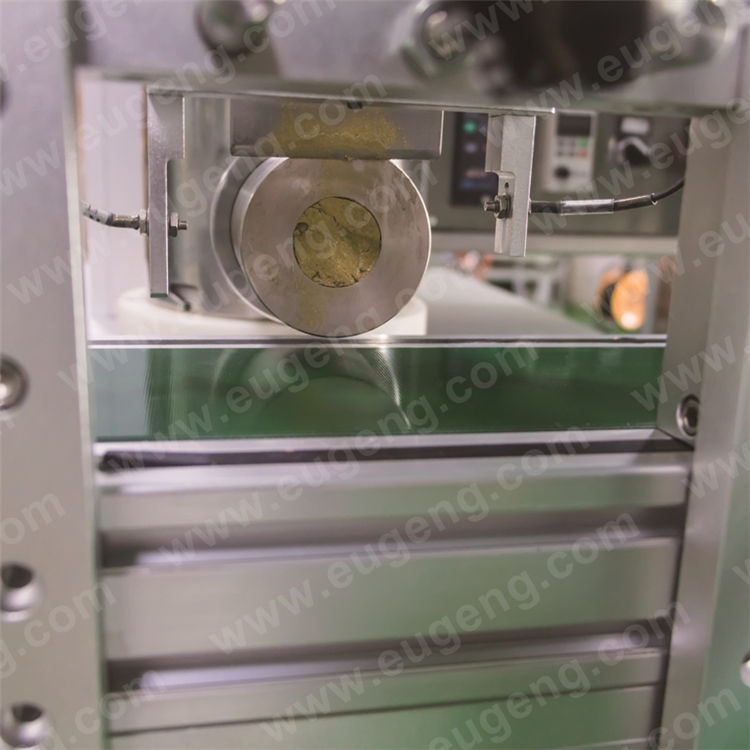

Extrusion nozzle
Baked powder extrusion machine Youtube Video link

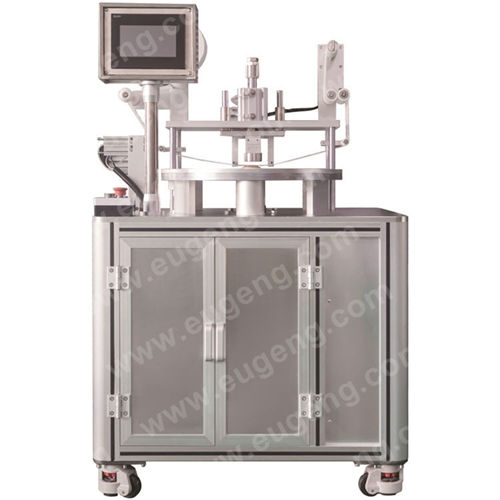

Baked powder pressing machine after extrusion. Controlled by air cylinder.
Mold Pucks according to different godet size
Capacity 12-15pcs/min
Feature
Rotary working table
Powder press with air cylinder, pressuer can be adjustable
Automatic winding
Pressing time can set with once or twice
Automatic discharge
Vacuum collection powder Touch screen control system
Standard Specifications
| Model No. | EGBP-01 |
| Production type | Rotary |
| Output capacity/hr | 720-900pcs |
| Control Type | Air cylinder |
| No. of pressing head | 1 |
| No.of cavities | 12 |
| No. of operator | 1 |
| Power consumption | 0.75kw |
| Dimension | 1.2×0.8×1.65m |
| Weight | 3 50kgs |

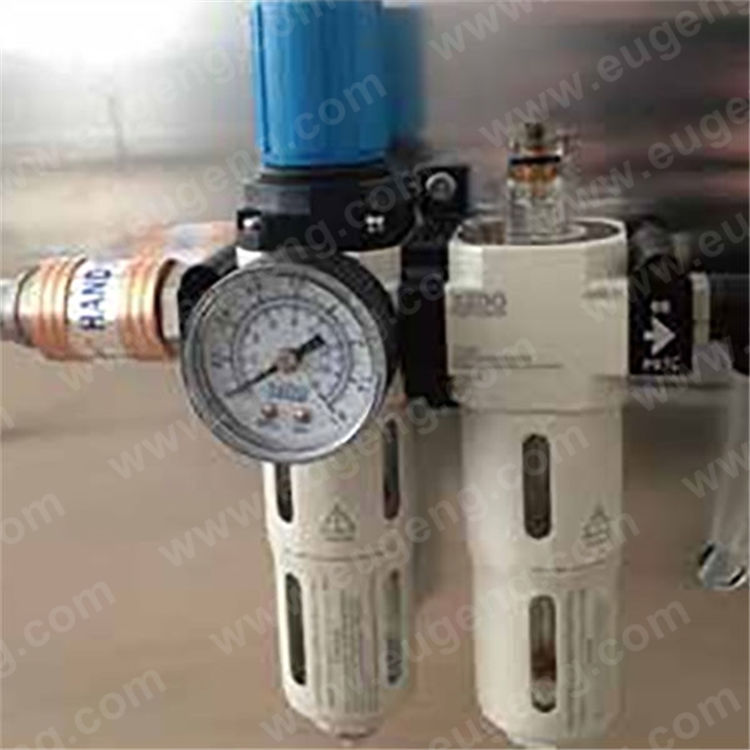

| Air input | 4-6 kgf |
Machine Detail As Following Photo

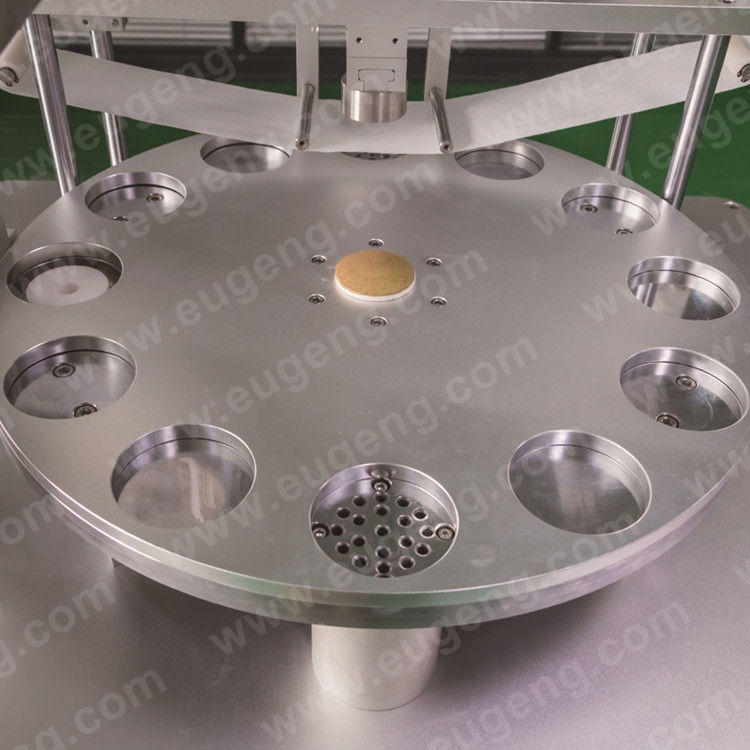

Turntable

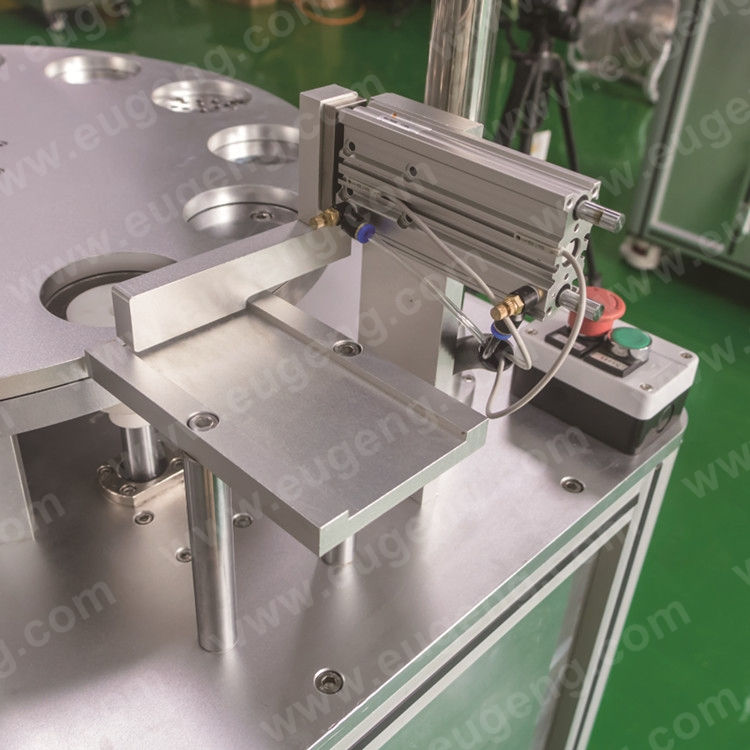

Discharge

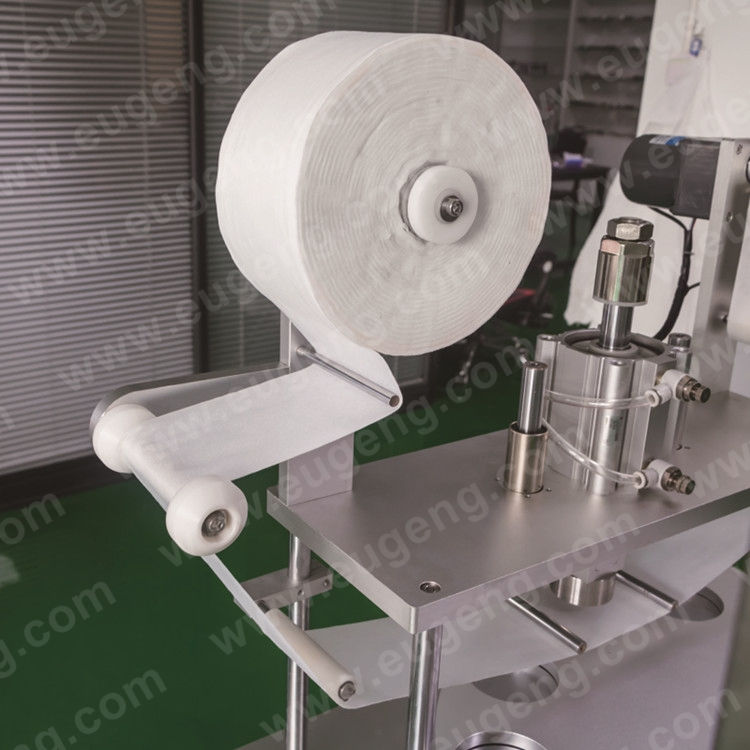

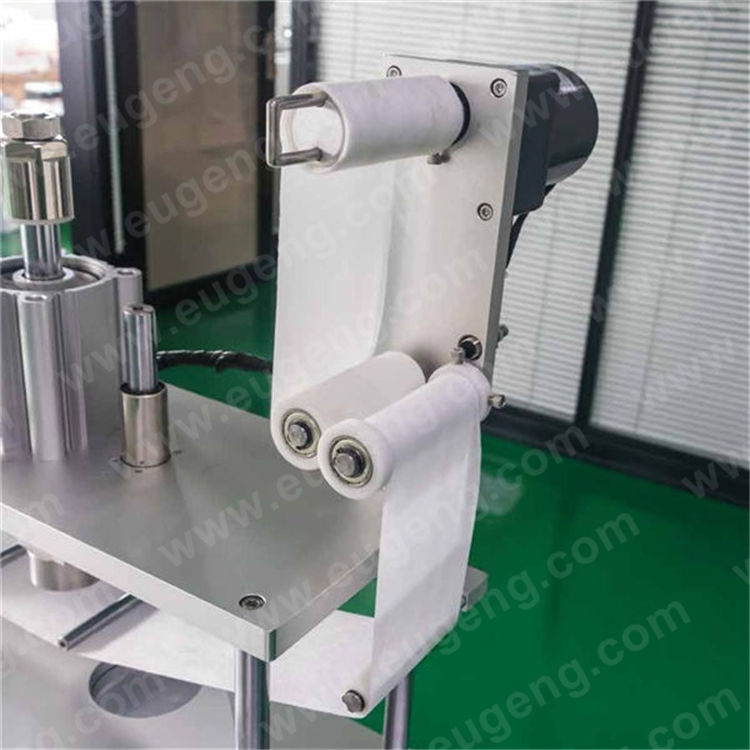

Winding

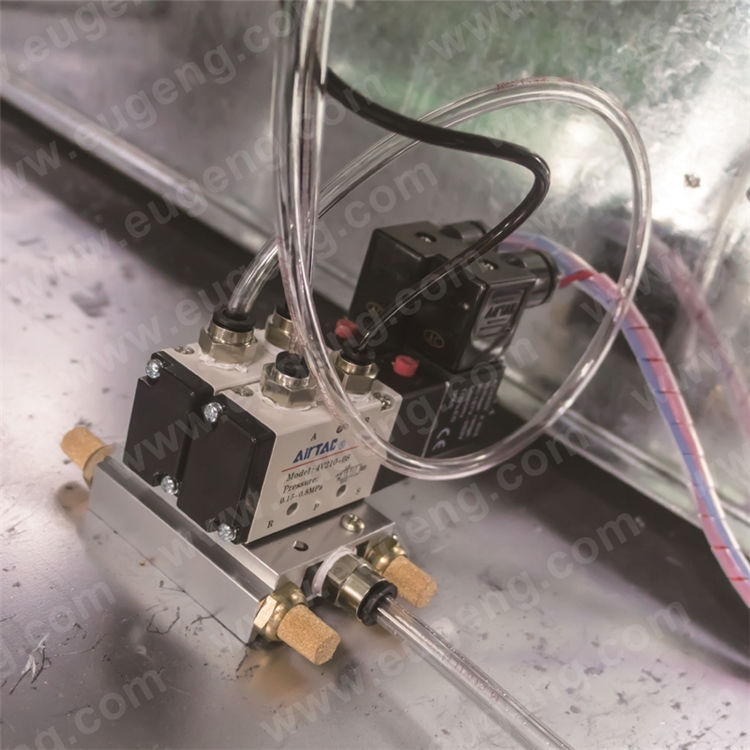

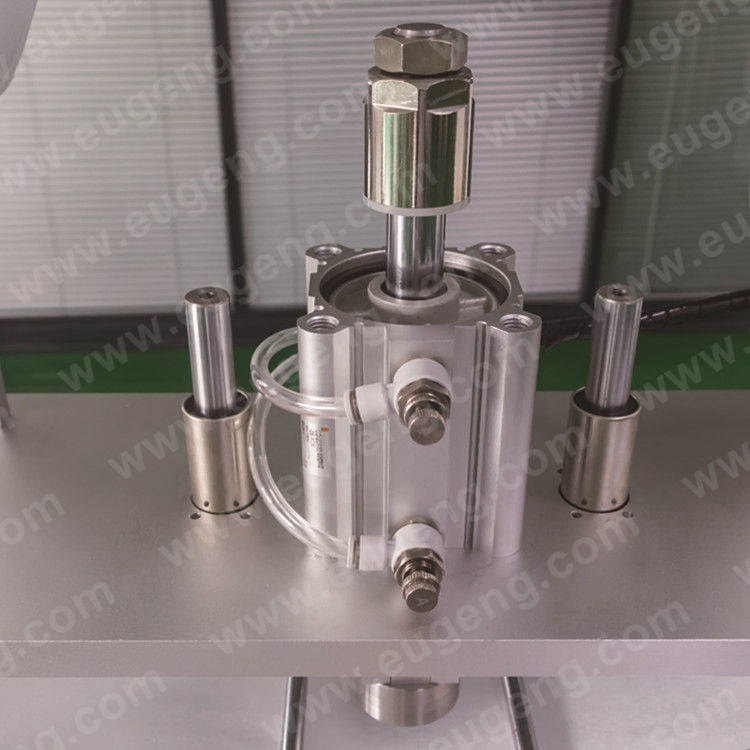

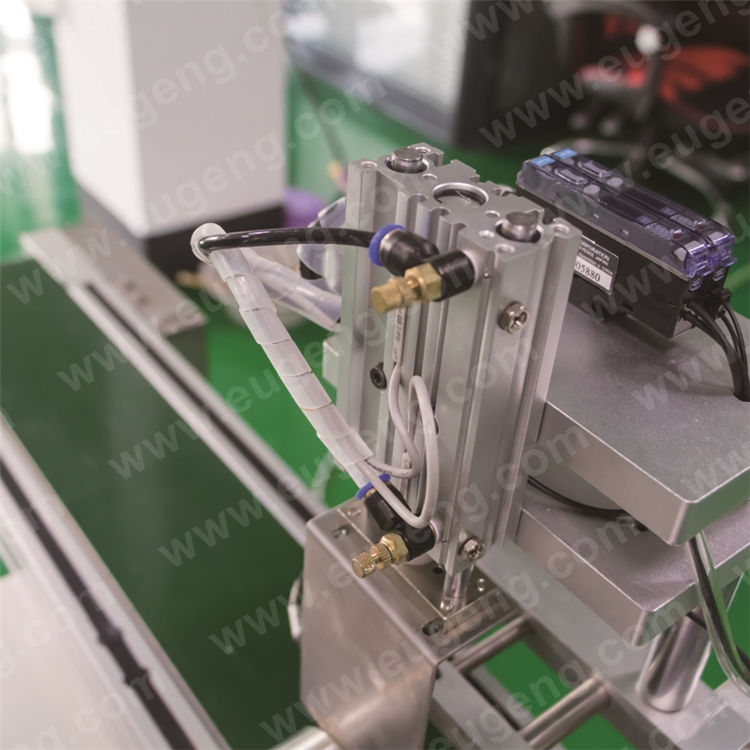

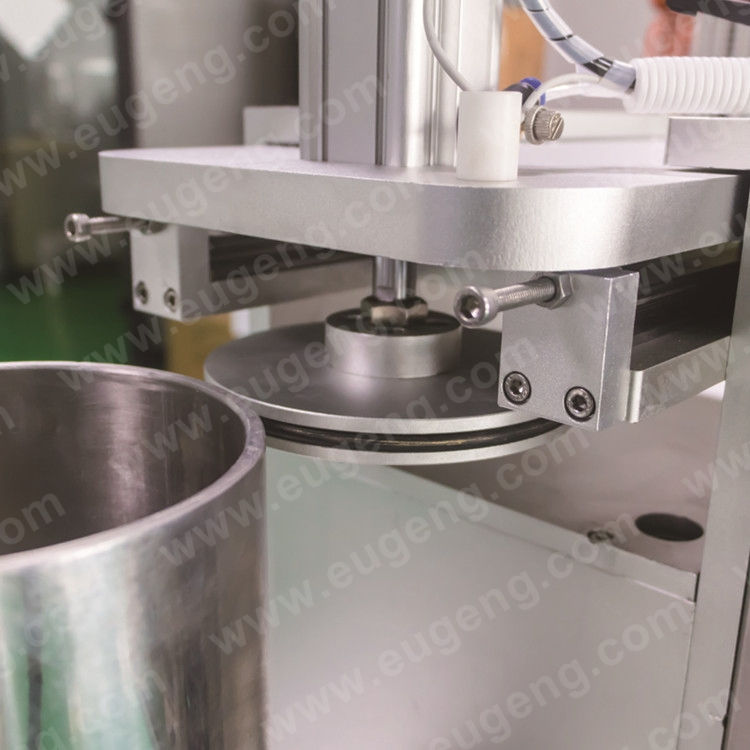

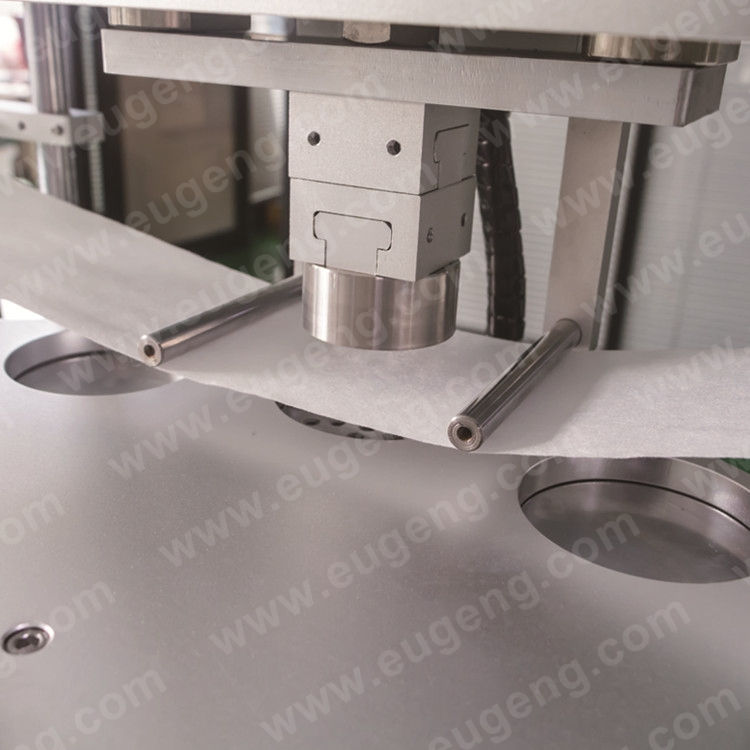

Air cylinder pressing
Different godet need change different pressing head
Fabic size can be adjustabel

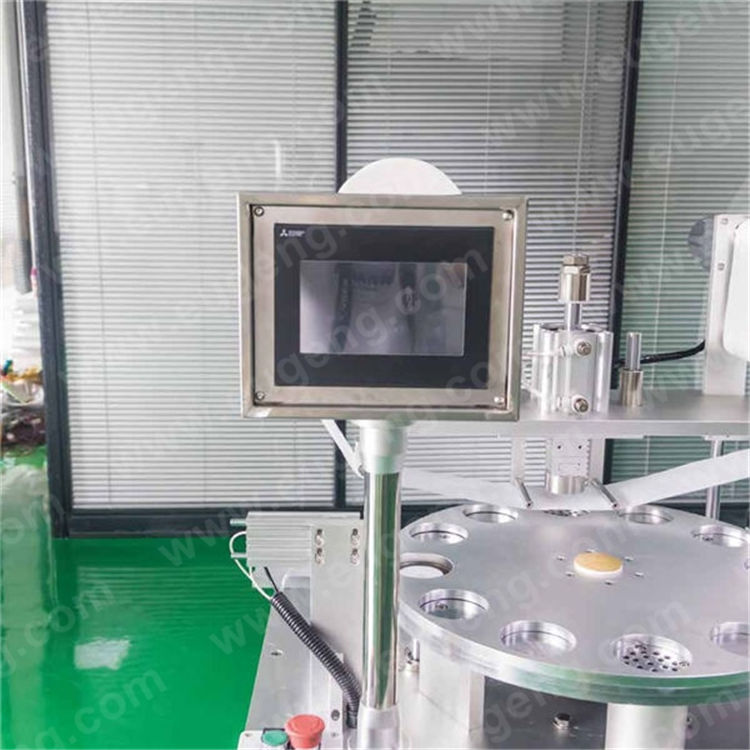

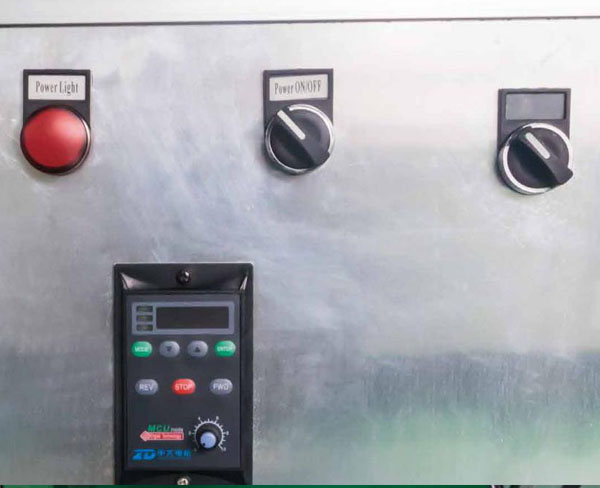

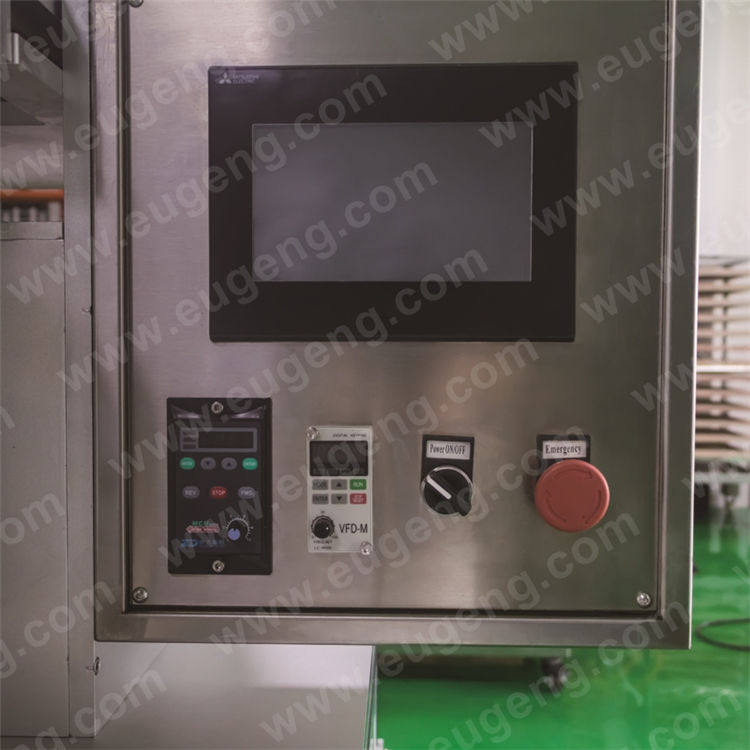

Touch screen operation panel
Emergency
Speed controller
Baked powder press machine Youtube Video link

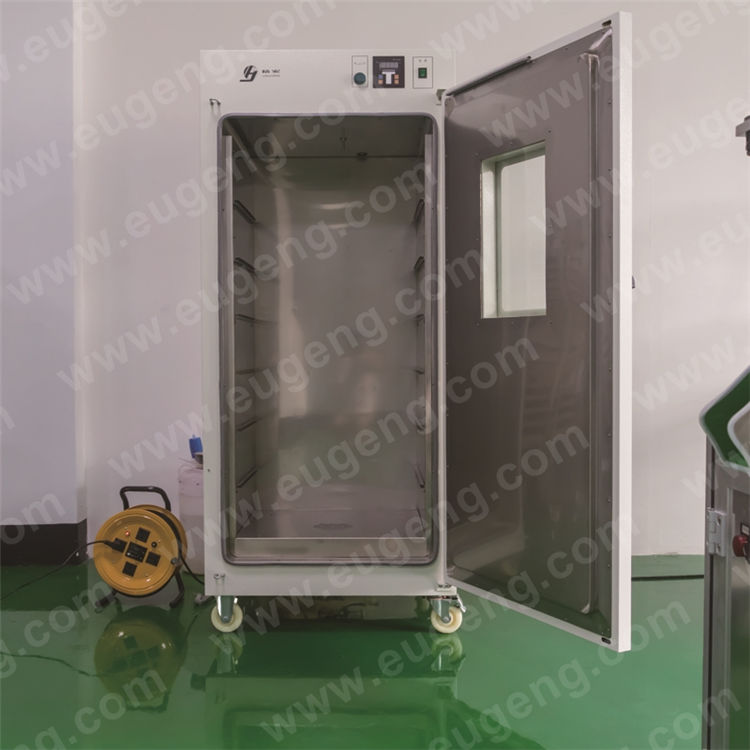

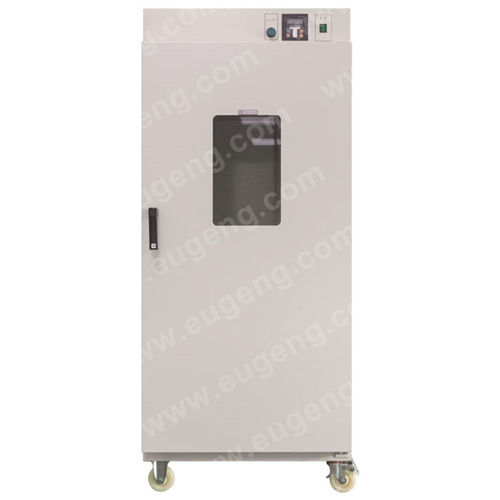

Baked powder baking oven after pressing
Capacity 1500pcs /cart
Feature
Aie dry baking with electric heating
Staines steel 304 inner frame
Max temp 300°C
Baking temp can be adjustable
Air blowing flowing can be adjustable

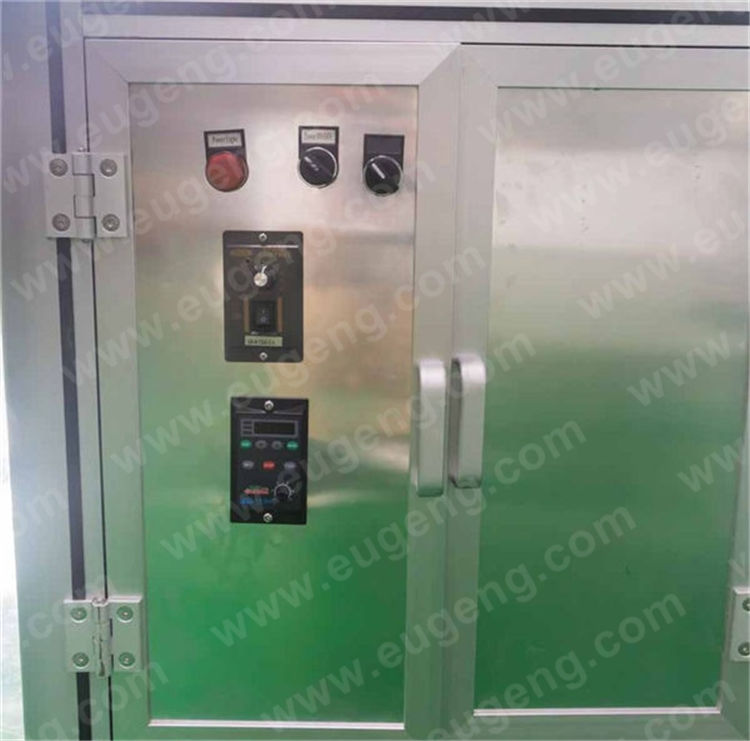

Machine Detail As Following Photo

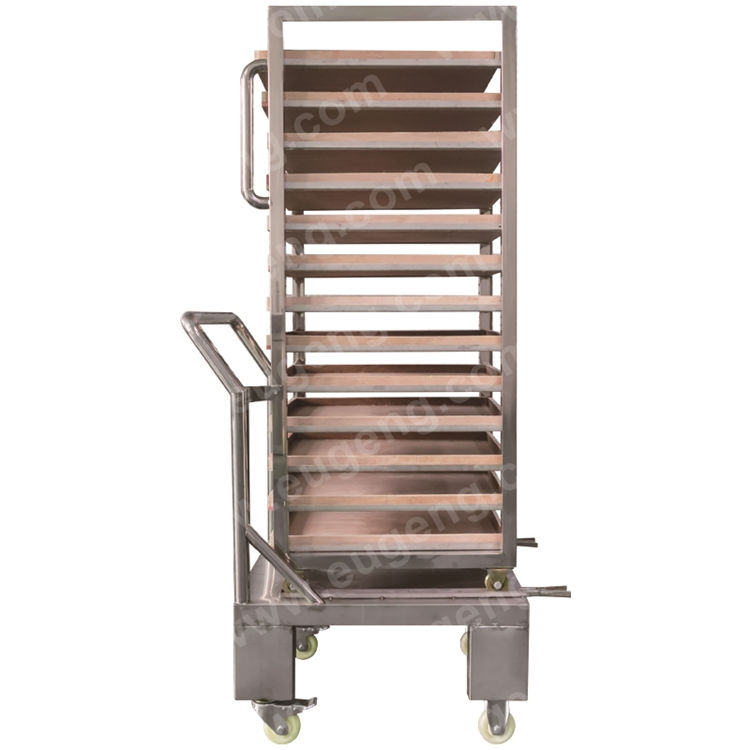

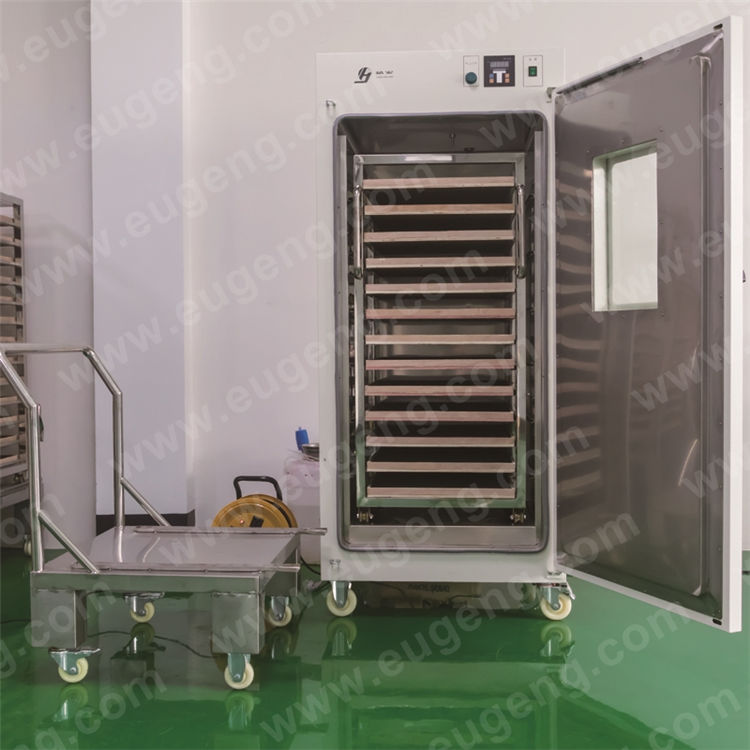

Carts with wooden tray
Inner side og bake oven
Baking with crat
Baked powder baking oven Youtube Video link
Baked powder scrapping machine for treating surface of pressed powder after baking.
Make surface smooth and easily taken down for makeup.

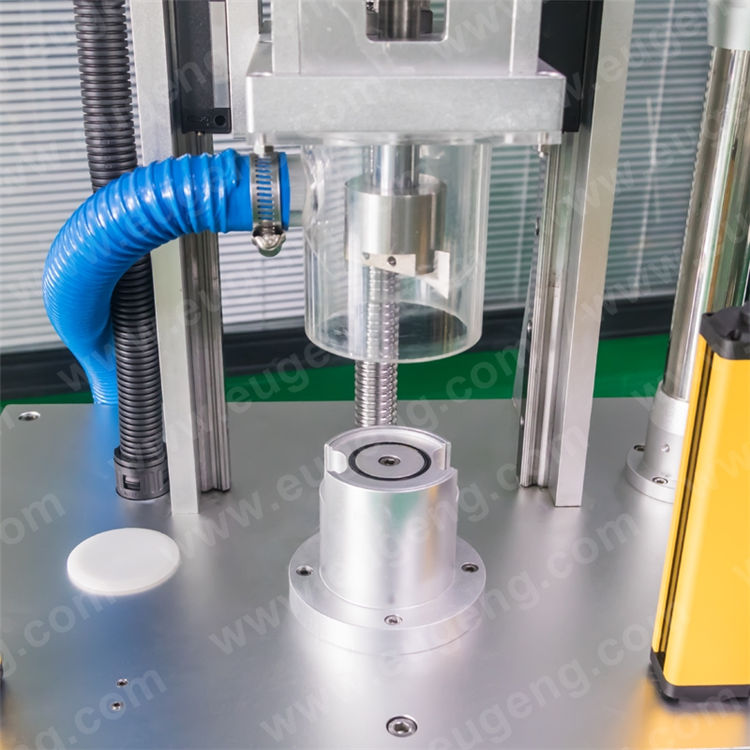

Mold Scrapping knife& godet holder
Capacity 12-15pcs/min
Feature
Single holder for ceramic godet with vacuum fixed
Servo motor control knife moving up&down speed
Scrapping speed can be adjusted
Vacuum for collection powder make sure cleaning
Safety sensor protect operator hand cutting Touch screen operation
Standard Specifications
| Model No. | EGBS-01 |
| Production type | Manual |
| Output capacity/hr | 720-900 pcs |
| Control Type | Servo motor |
| No. of knife | 1 |
| No. of holder | 1 |
| Display | PLC |
| No. of operator | 1 |
| Power consumption | 0.75kw |
| Dimension | 0.65×0.85×1.4m |
| Weight | 150kgs |
| Air input | 4-6 kgf |
Machine Detail As Following Photo
Turntable

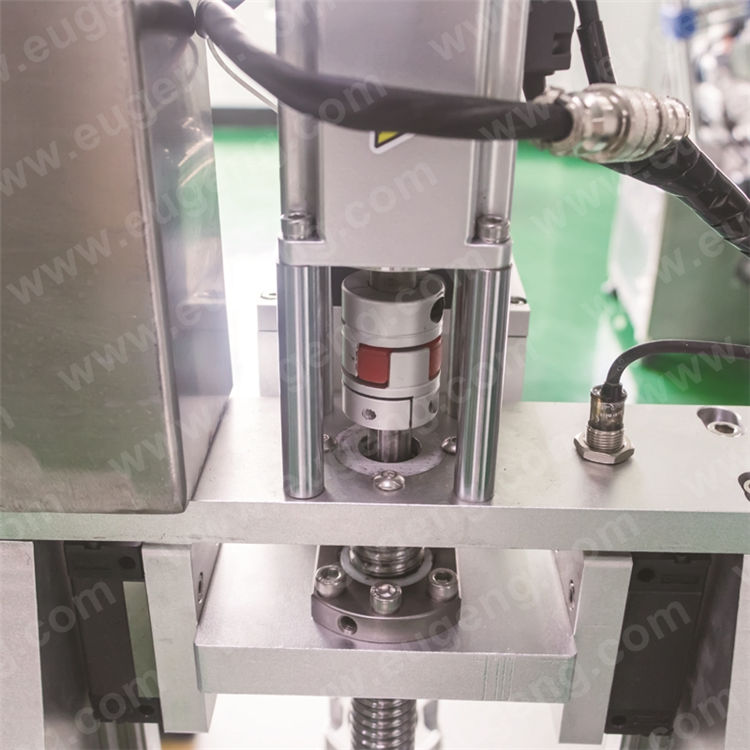

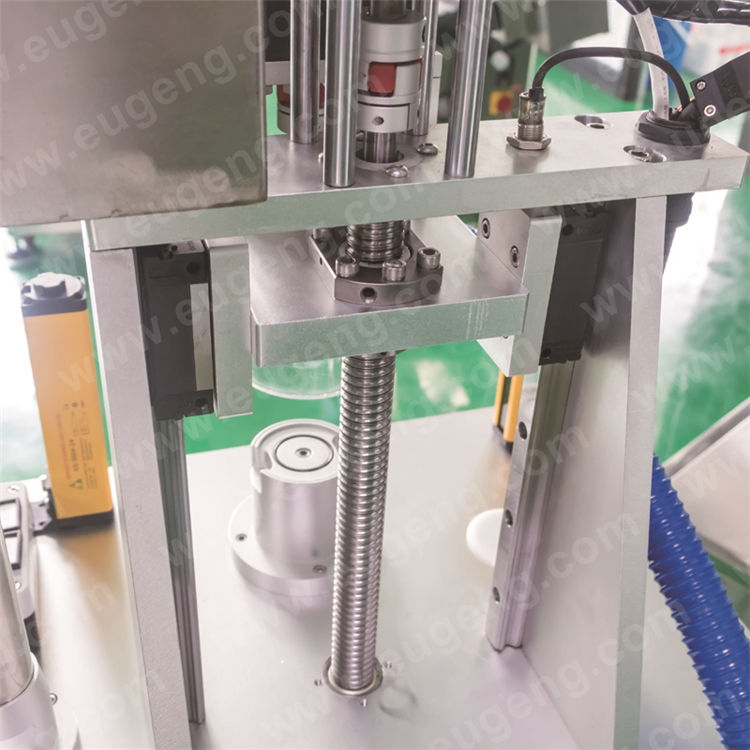

Servo motor control up&down speed
Scrapping knife height can be adjusted

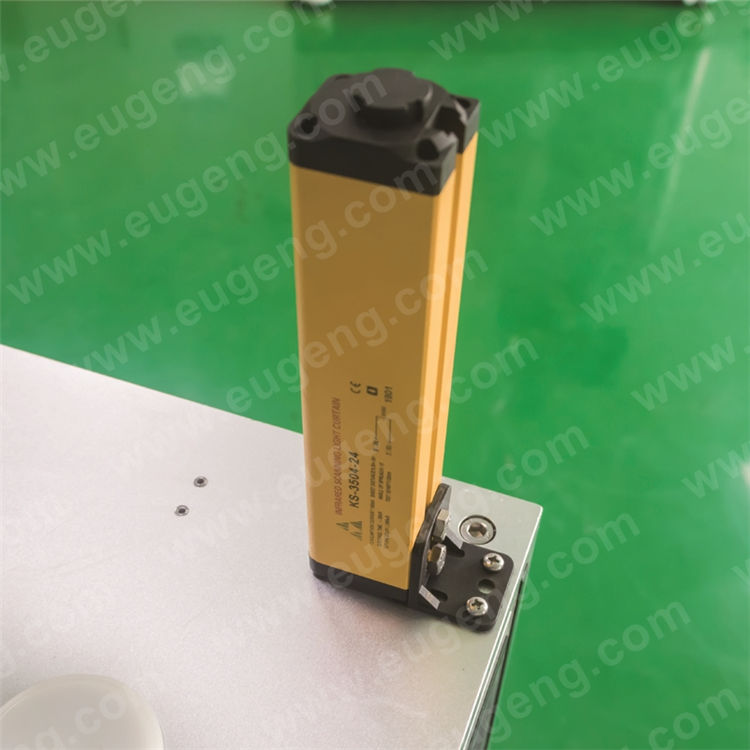

Safety sensor protect operator hand cutting

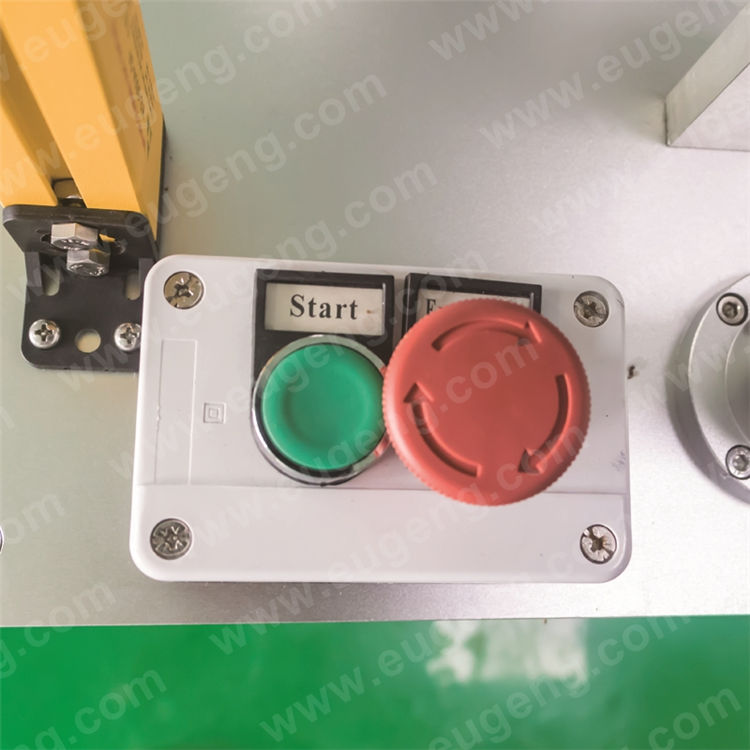

Emergency

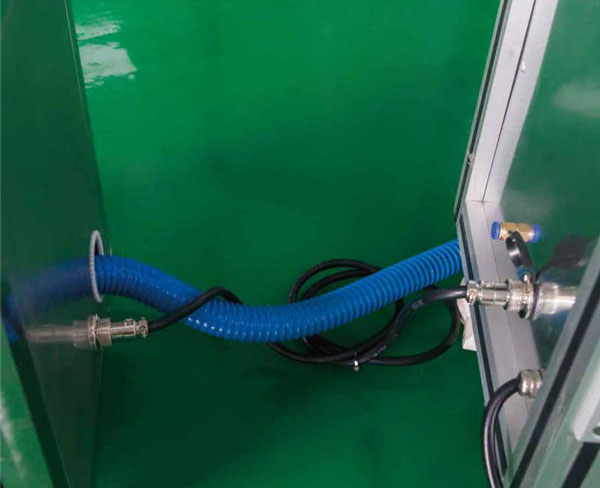

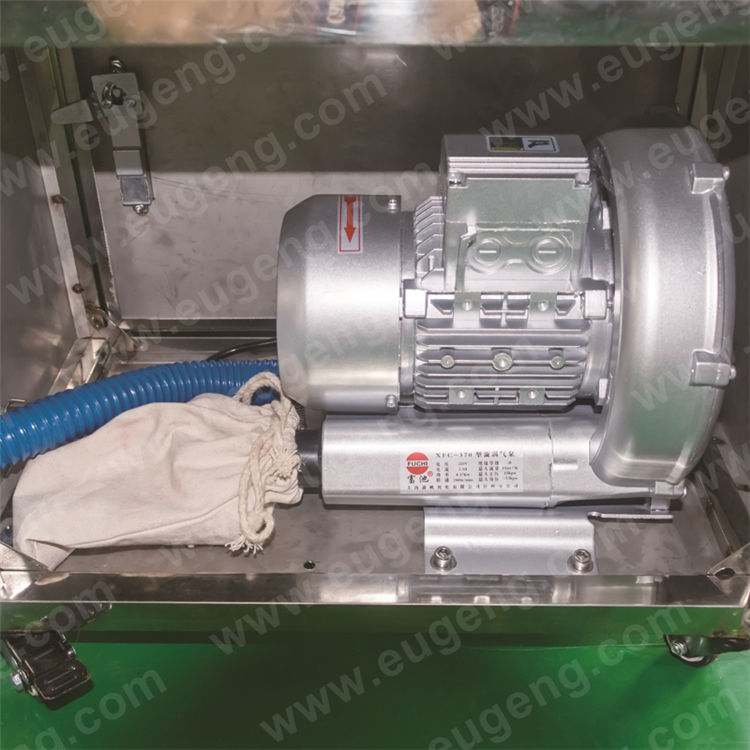

Vacuum for collection the dust powder

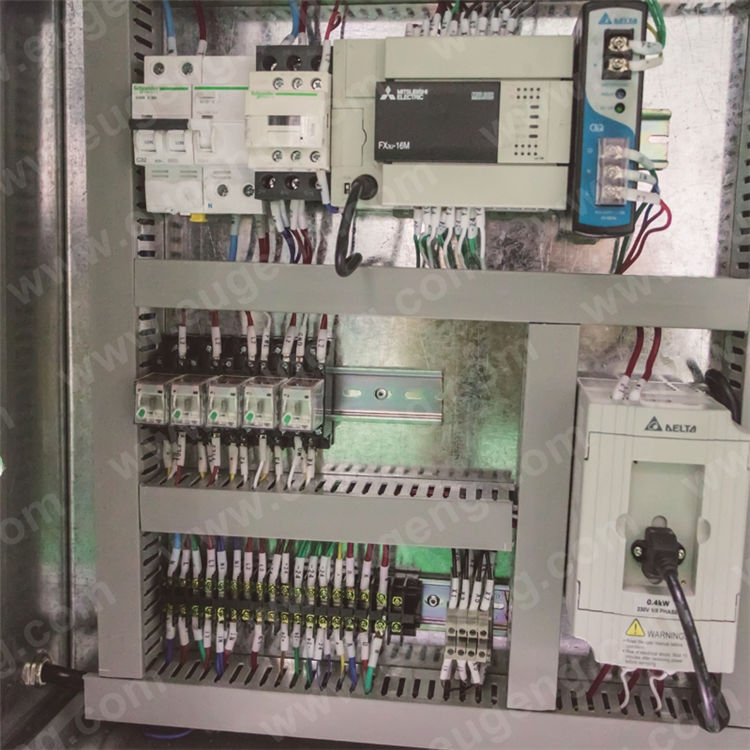

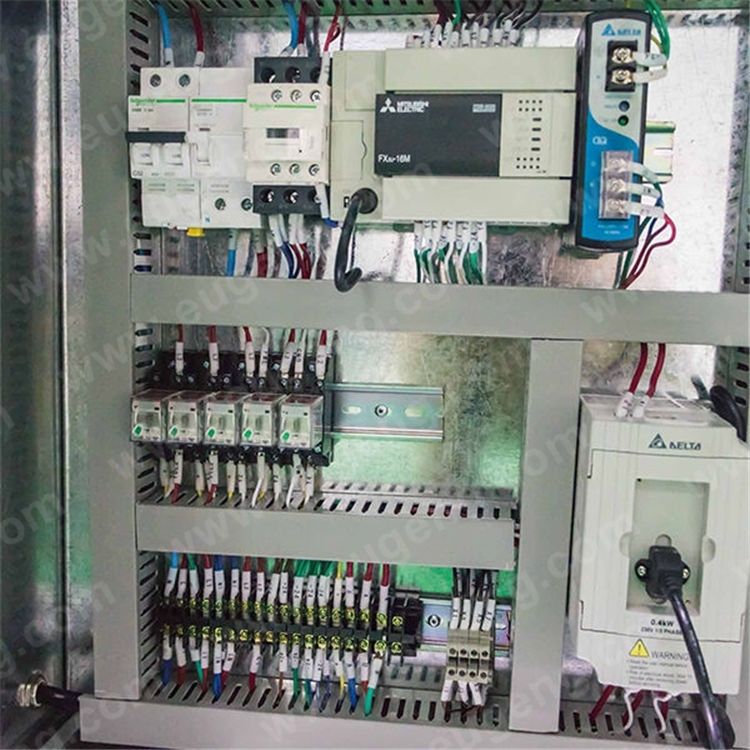

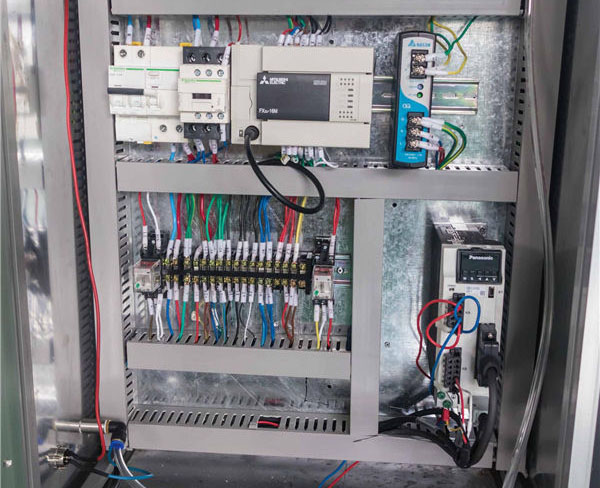

PLC MITSUBISHI
Baked powder scrapping machine Youtube Video link
