Face Cream Filling Machine

Short Description:

EGHF-02 face cream filling machine is a multifunction hot filling machine,designed for production of skin care face cream,ointment,cleansing balm/cream,hair wax,air fresh balm,scented gel,wax polish,shoe polish etc..






Product Detail

Product Tags

Face Cream Filling Machine

EGHF-02 face cream filling machine is a semi automatic multifunction hot filling machine with 2 filling nozzles,
designed for production of hot liquid filling,hot wax filling, hot glue melt filling,skin care face cream,ointment,cleansing balm/cream,hair wax,air fresh balm,scented gel,wax polish,shoe polish etc.

Face Cream Filling Machine Target Products

Jar gel,cream,cleansing balm

face cream filling machine 1 face cream filling machine 2 face cream filling machine

Face Cream Filling Machine Features

.Piston filling system, filling speed and volume can be set in the touch screen

.With mixer and heater,mixing speed and heating temperature adjustable

.3 layers jacket tank with 50L

.2 filling nozzles and filling 2 jars once at the same time

.Servo motor control filling,filling head can go down&up when filling from bottom to up

.Filling volume 1-350ml

.With preheating function,preheating time and temperature can be set as needs

Face cream filling machine Speed

.40pcs/min

Face cream filling machine Components Brand

PLC&Touch screen is Mitsubishi, Switch is Schneider,Relay is Omron,Servo motor is Panasonic,Pneumatic componets is SMC

Face cream filling machine Optional parts

.Cooling machine

.Auto capping machine

.Auto labeling machine

.Auto shrink sleeve labeling machine

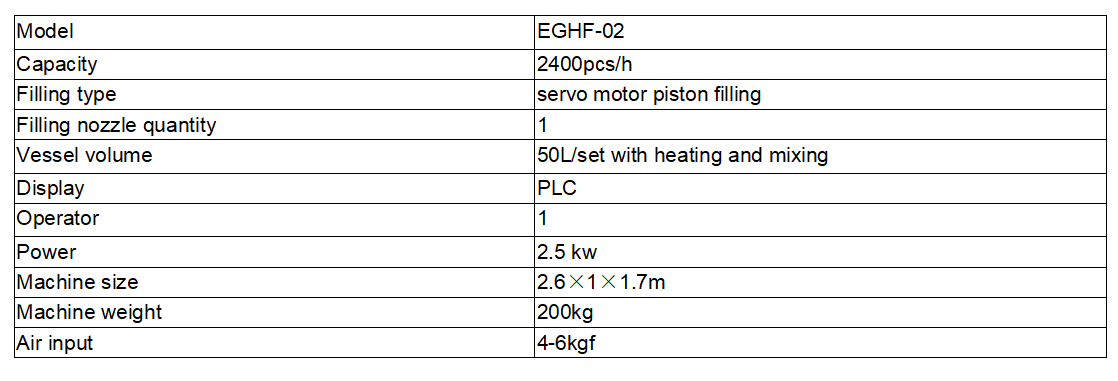

Face CreamFilling Machine Specification

face cream filling machine 0

Face Cream Filling Machine Youtube Video Link

Face Cream Filling Machine Detailed Parts

face cream filling machine     face cream filling machine 3     face cream filling machine 2

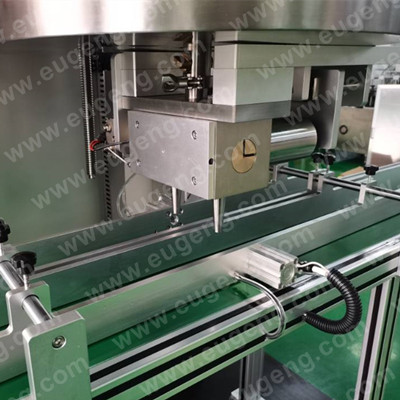

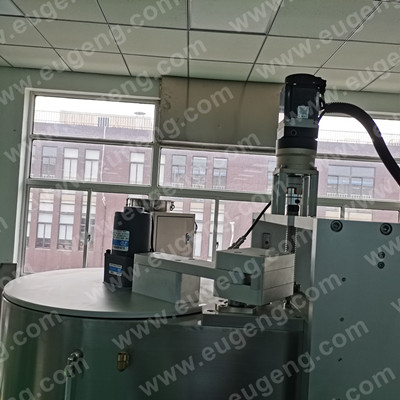

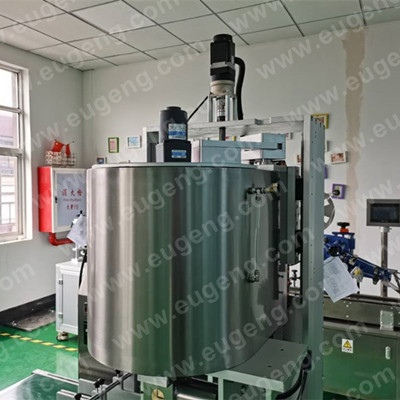

50L 3 layers jacket tank with mixer and heater   Servo motor control filling nozzle up&down         2 filling nozzles to fill 2 jars once at the same time

face cream filling machine 1      shoe polish filling machine9     face cream filling machine 4

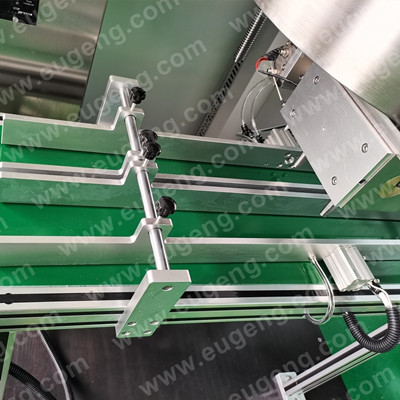

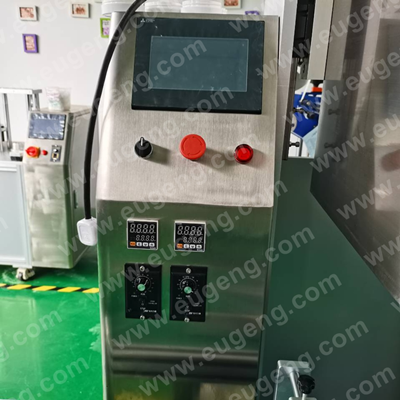

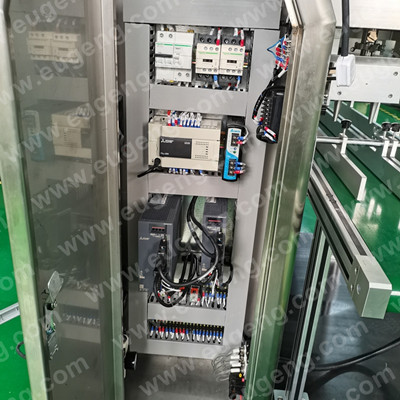

Guider size can be adjusted as jar size                     Electric cabinet separated with machine                  Panasonic Servo motor,Mitsubish PLC
