Semi Automatic Lipstick Filling Line
Model EGLF-1A lipstick filling line is a semi automatic filling machine designed for the production of lipstick,as silicone molding lipstick,aluminum mold lipstick ,lip pencil etc..
Lipstick filling line includes single nozzle hot filling machine,cooling machine and releasing machine.
Silicone molding lipstick,aluminum mold lipstick ,lip pencil
Semi automatic lipstick filling line Capacity
3-4molds with 36-48pcs /min
Semi automatic lipstick filling line mold
.Silicone mold
.Silicone mold holder
.Aluminum mold
Semi automatic lipstick filling line features
Mold pre-heating with touch heating plate and blowing hot air from top
· 1sets of 3 layers of jacketed vessels 25L capacity with mixer
· Tank with automatic pre-heating system from Monday to Sunday , time can be adjustable
· Gear pump filling system with high Accuracy +/-0.3%
· Filling volume and filling speed controlled by digital input , and filling volume and speed can be adjustable
· Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
· Filling nozzle moving up and down for filling from bottom to up prevent bubble on lipstick
· Servo motor control filling nozzle moving up and down while filling , speed can be adjustable
. Automatic frost remove prevent water on the mold , and frost removing every 4 mins, and time can be adjustable
. Temp control by digital T.I.C, and Min is -20 Centigrade
. Automatic starting and stopping system control the real temperature within 2 Centigrade at setting temperature
. Stainless steel 304 frame, and spray foam in frame for preventing water dipping at the door
. Cooling compressor with both air and water cooling
·Semi-automatic releasing
·Taking out the top mold by hand with tooling, and then put a guid mold for help put empty tubes with straight way
·Put the mold into semi-automatic releasing machine for insert lipstick into case
Two button pressing designing for protect operator safe
·Releasing area have air blowing fro aluminum mold and and vacuum fro silicone mold both function
Semi Automatic Lipstick Filling Line Details Show
Mold preheating
Gear pump filling system.while filling while mold moving

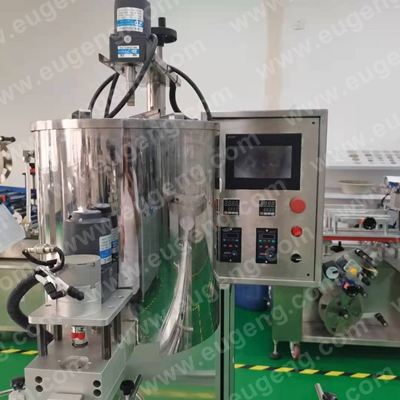

25L heating tank ,temperature adjustable

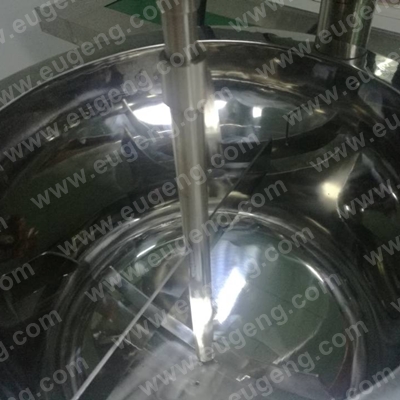

Mixer inside of tank,mixing speed adjustable

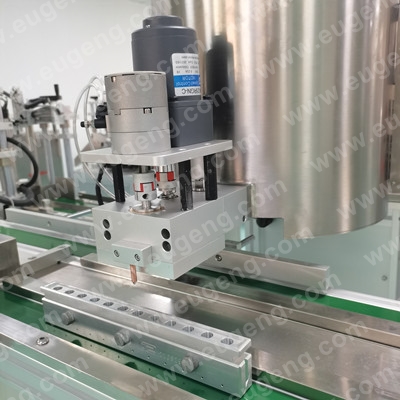

Filling part
Filling volume adjustable

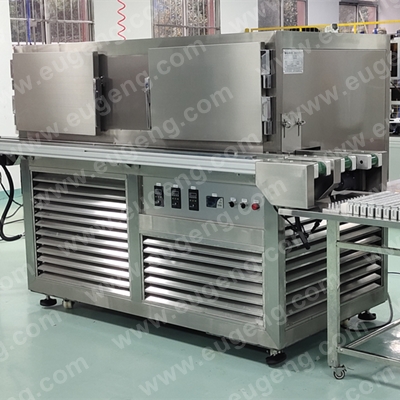

Cooling machine with lowest temp -20 Centigrade

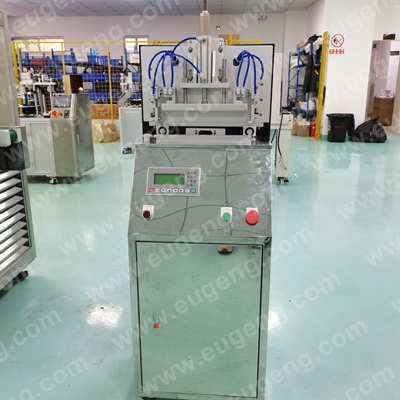

Releasing machine for both aluminum mold lipstick and silicone lipstick
