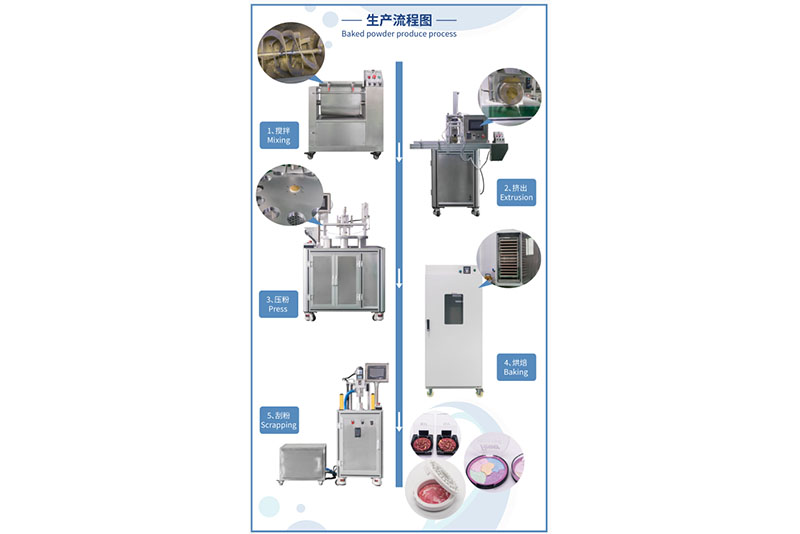

Baked powder production line

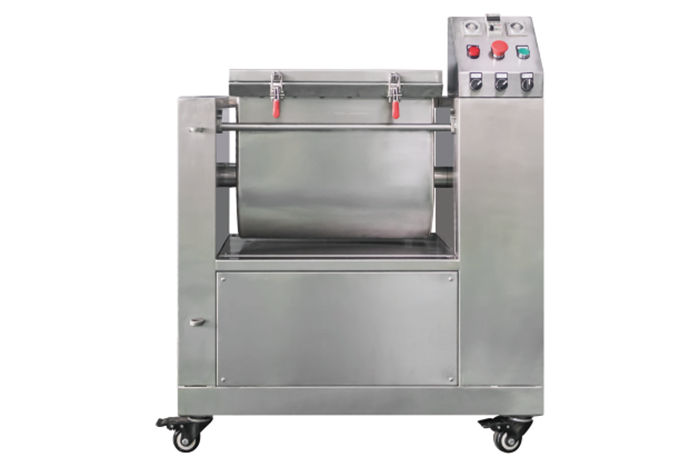

Firstly, mixing,

1 set 20L mixing tank; Mixing speed can be adjustable; Mixer scrapper easily take off and reassembly; CW time and CCW time is adjustable; Tank can 90degree open for discharge easily

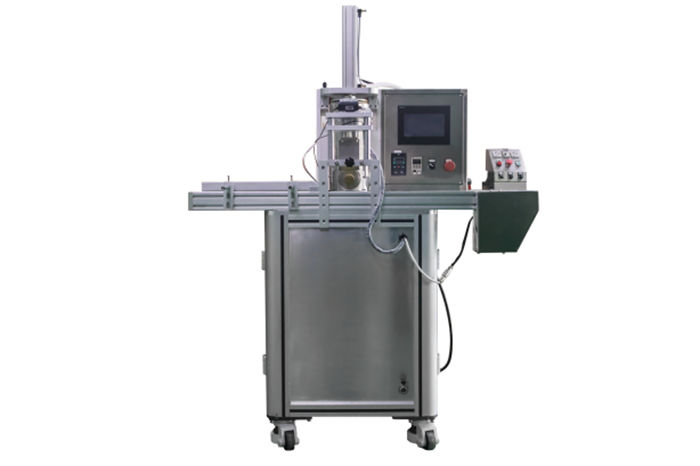

secondly,extrusion,

1 set 10L tank; Screw from back side and pressing from top; Sensor control the extrusion powder length ,and it can be adjusted so that control the powder weight; Automatic cutting; 3 Type working model for felixable optional; Operation with touch screen

Thirdly,pressing

Rotary working table

Powder press with air cylinder ,pressure can be adjustable

Automatic winding

Pressing time can set with once or twice

Automatic discharge

Vacuum for collection powder

Touch screen control system

Fourthly,baking

Aie dry baking with electric heating; Staines steel 304 inner frame; Max temp 300°C; Baking temp can be adjustable; Air blowing flowing can be adjustable

Finally,scrapping

Single holder for ceramic godet with vacuum fixed; Servo motor control knife moving up&down speed; Scrapping speed can be adjusted; Vacuum for collection powder make sure cleaning; Safety sensor protect operator hand cutting; Touch screen operation

Safety

main

1

Mixer

2

Extrusion machine

3

Press machine

4

Baking machine

5

Scrapper


Post time: Jan-06-2021
