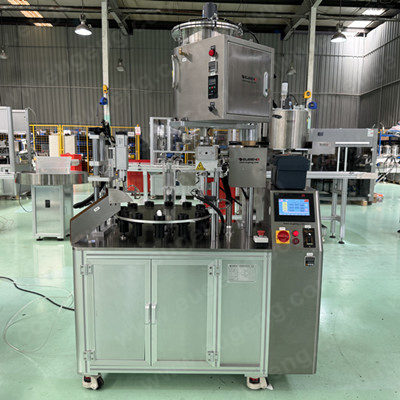

Liquid Lipstick Filling Machine
Model EGMF-01 Liquid Lipstick Filling Machine is a semi-automatic filling and capping machine,rotary type design&widely applied for cosmetic liquid filling and capping.
Especially for liquid lipstick,lip gloss,lip cream,lip oil etc..
·1 set 25L 3 layers jacket tank with both heating and mixing functions
· Piston controlled dosing pump, and with servo motor driving,while filling while tube moving down
. Machine with sucking back function so that prevent dripping
·Accuracy +-0.03g
·Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
·Servo-motor capping unit with adjusted torque,capping speed and capping height also adjustable

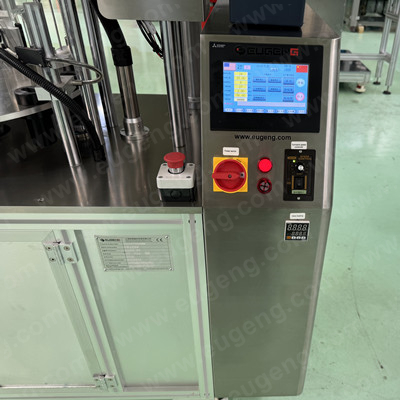

·Touch screen control system with Mitsubishi brand PLC
Servo motor Brand: Panasonic Original: Janpan
Servo motor control the capping, and torques can be adjusted, and reject rate is less than 1%
Liquid Lipstick Filling Machine Wide application :

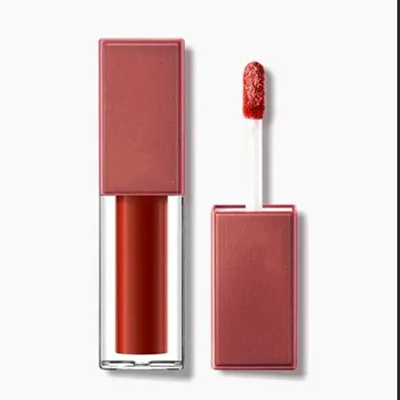

For filling liquid lipstick,lip gloss,mascara,eyeliner,nail polish,cosmetic liquid foundation,serum,essential oil,perfume,teeth whiten gel etc..

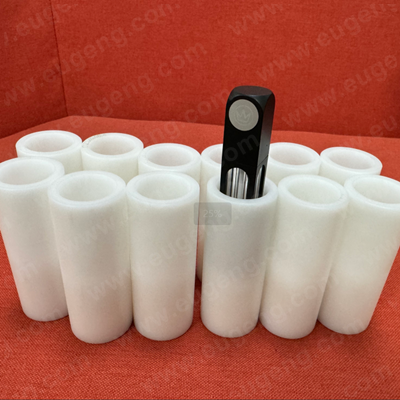

Liquid Lipstick Filling Machine Puck Customized
POM(according to the diameter and shape of tube)
Liquid Lipstick Filling Machine Capacity
30-35pcs/min
Liquid Lipstick Filling Machine Optional
Heating mixing filling tank or pressure tank
Extra one tank
Extra one set of piston and valve for different color change and fast cleaning

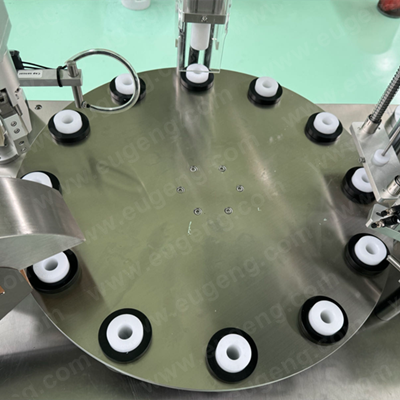

Rotary type with 12 puck holders

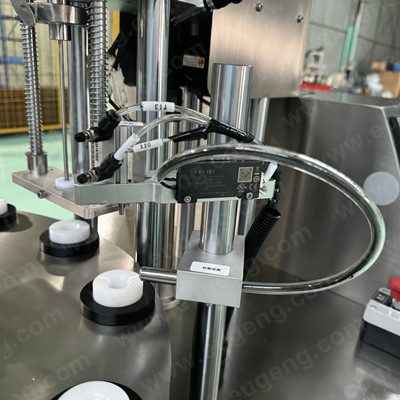

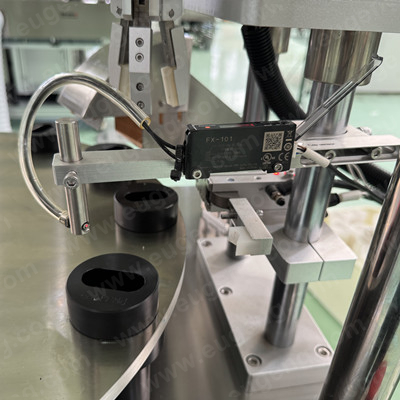

Tube sensor and reverse direction check
Single nozzle filling

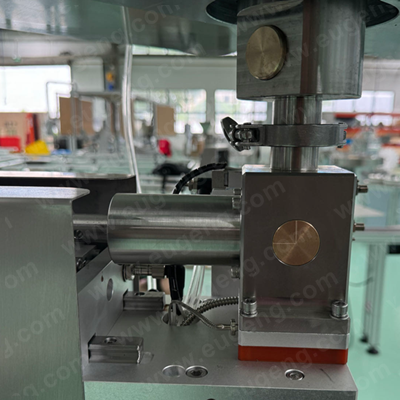

Piston filling system,easy cleaning

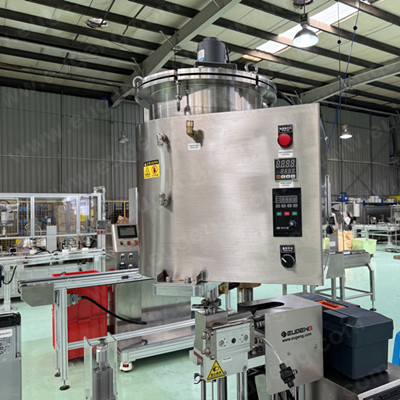

25L jacket heating tank with mixer
Press wiper by air cylinder
Cap sensor check

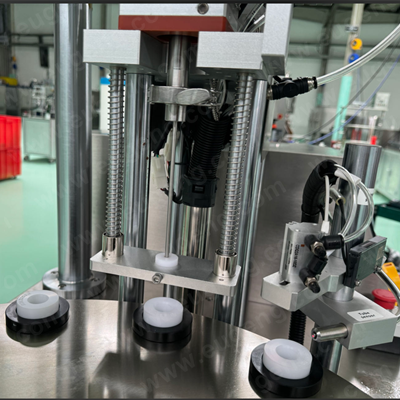

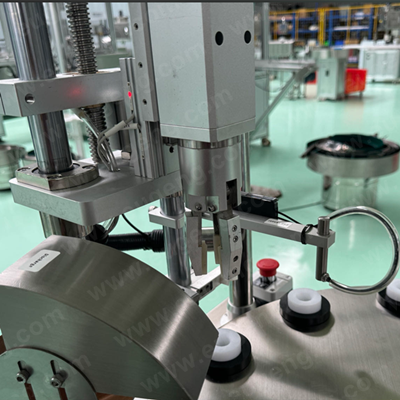

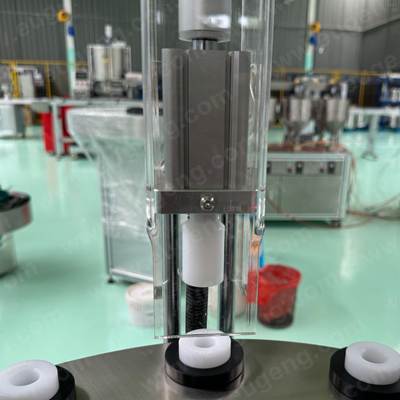

Servo screw capping,torque adjustable

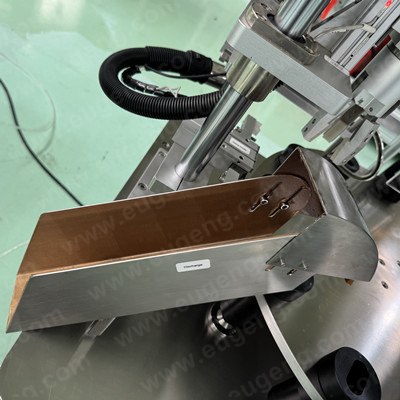

Automatic discharge by air cylinder

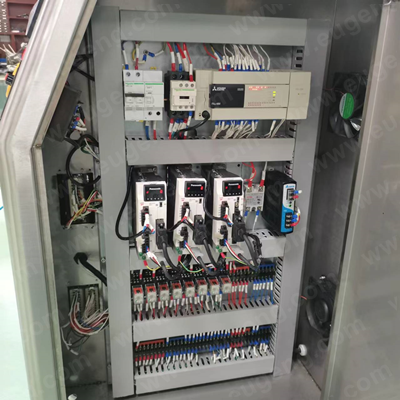

Mitsubishi PLC,separated electric cabinet
Panasonic servo control filling&capping
Only customize puck when change tube
Eugeng is a professional and creative company of machinery for cosmetics in Shanghai China.We design,manufacturer and export cosmetics machines,such as liquid lipstick filling machine,lip gloss mascara&eyeliner filling machines,solid lipstick machine,lip balm filling machine,nail polish filling machine,compact powder press machines,baked powder machines,slurry wet powder filling and press machine,cosmetics hot filling machine,deodorant stick,sunscreen stick hot filling machine,labelers,cartoning machine,cellophane machine and other cosmetics machinery etc..
