Shoe Polish Filling Machine

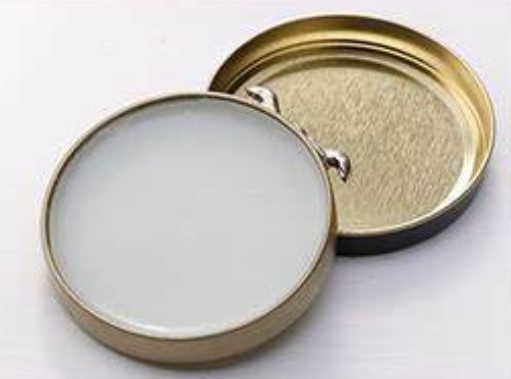

EGHF-02 shoe polish filling machine is semi automatic a hot filling machine,designed for production of hot liquid filling,shoe polish,wax polish,car polish,floor polish,tyre polish,hair wax,oinment,scented gel,face cream,cleansing balm etc..

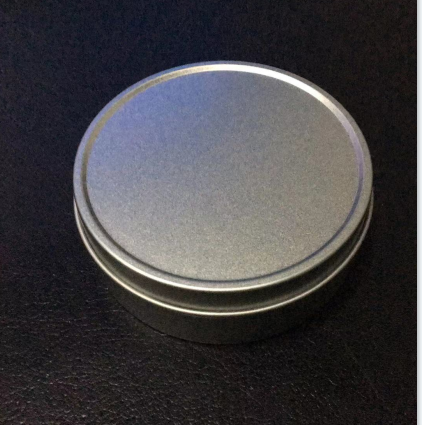

EGHF-02 shoe polish filling machine is a semi automatic hot filling machine,designed for filling jar filling products,such as shoe polish,wax,cream,ointment,hot melt glue and so on.Suitable for aluminum tins and plastic jars.

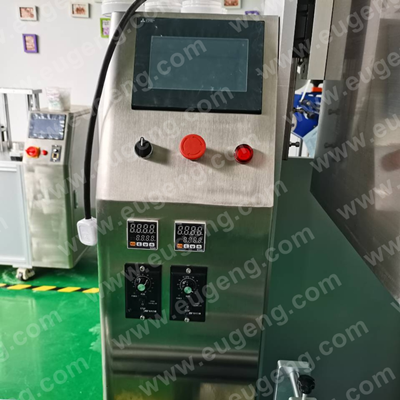

.Piston filling system, filling speed and volume can be set in the touch screen
.With mixer and heater,mixing speed and heating temperature adjustable
.3 layers jacket tank with 50L
.2 filling nozzles and filling 2 jars once at the same time
.Or 4 filling nozzles, filling 4pcs once
.Servo motor control filling,filling head can be made with going down&up when filling from bottom to up as demands
.Filling volume 1-500ml
.With preheating function,preheating time and temperature can be set as needs
Shoe polish filling machine speed
.40pcs/min
Shoe polish filling machine components brand
PLC&Touch screen is Mitsubishi, Switch is Schneider,Relay is Omron,Servo motor is Panasonic,Pneumatic componets is SMC
Shoe polish filling machine optional parts
.Cooling machine
.Auto capping machine
.Auto labeling machine
.Auto shrink sleeve labeling machine

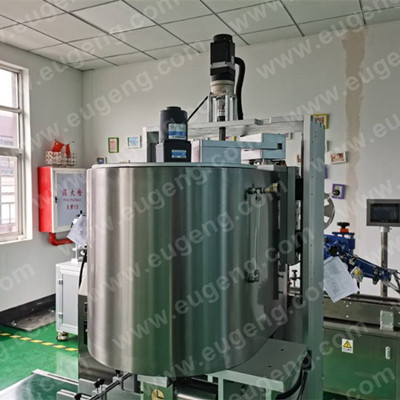

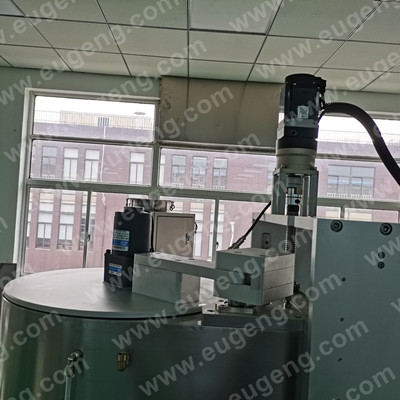

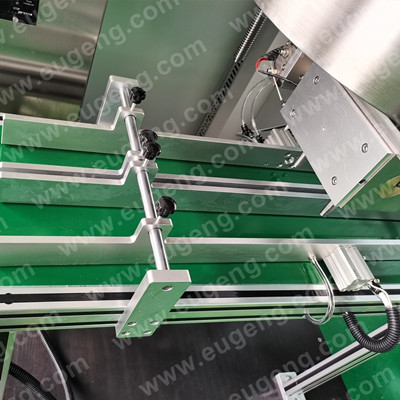

50L 3 layers jacket tank with mixer and heater Servo motor control filling nozzle up&down Guider size can be adjusted as jar size

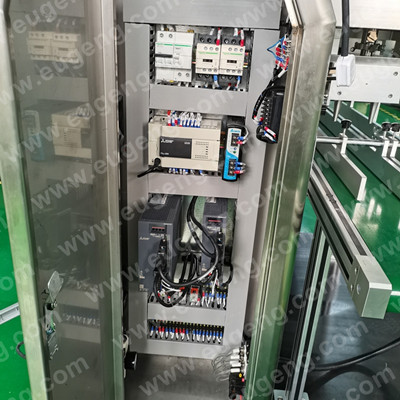

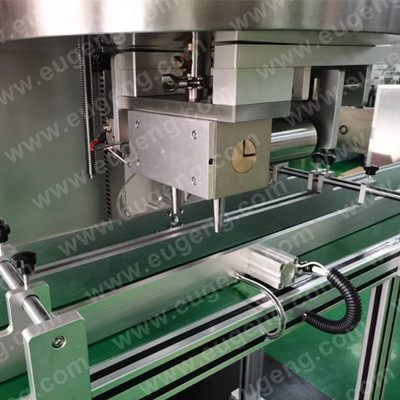

2 filling nozzles to fill 2 jars once at the same time Electric cabinet separated with machine Panasonic Servo motor,Mitsubish PLC
