Single Nozzle Lip Balm Filling Machine
EGLB-01A Single Nozzle Lip Balm Filling Machine has wide application.
For different size tube/jar,only customize puck holders as tube/jar size and shape.
· Ball lip balm,tube lip balm,deodorant stick,petroleum jelly,face balm,SPF stick,blush cream etc..
Single Nozzle Lip Balm Filling Machine Capacity
· 35pcs/min
· 1 sets of 3 layers of jacketed vessels 25L with stirrer
· Equipped with single filling nozzle,gear pump filling system,filling volume adjustable
. Filling Accuracy +/-0.5%
. All parts contacted with bulk be heated
. Hot filling into empty tube/jar directly,customize puck holder to hold tube/jar
. Air tunnel cooling system after hot filling to cool hot balm into solid
. Finish pressing cap or automatic capping by hand to get finish products
Single Nozzle Lip Balm Filling Machine Optional parts:
· 150L heating tank with pump to feed hot product into filling tank automatically as option
. Piston filling system as option
. Automatic 5P cooling machine with faster cooling function as option
.Automatic loading cap system as option
.Automatic pressing cap or automatic capping system as option
.Automatic labeling machine as option
|
Voltage |
AC220V/50Hz |
|
Weight |
300kgs |
|
Body material |
T651+SUS304 |
|
Dimensions |
2500*1400*1700mm |
Single Nozzle Lip Balm Filling Machine Detailed Parts

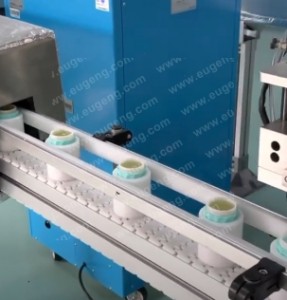

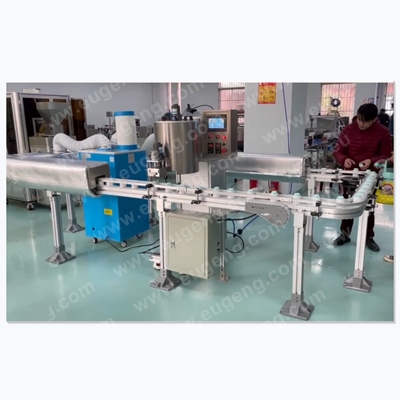

Circle type conveyor filling cooling line

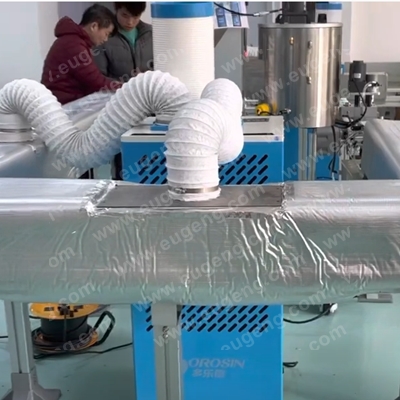

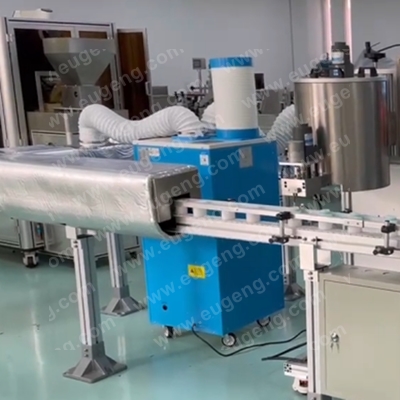

Air cooling tunnel to make hot liquid solid,automatic 5P cooling machine as Option for faster cooling

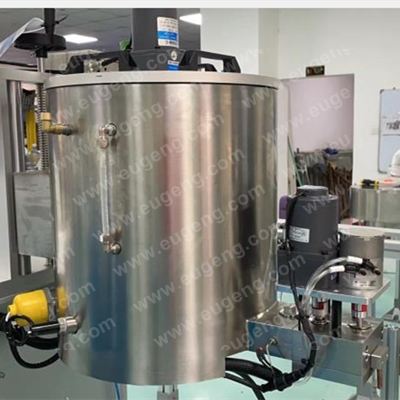

25L jacket heating tank with mixer
Refrigeration compressor

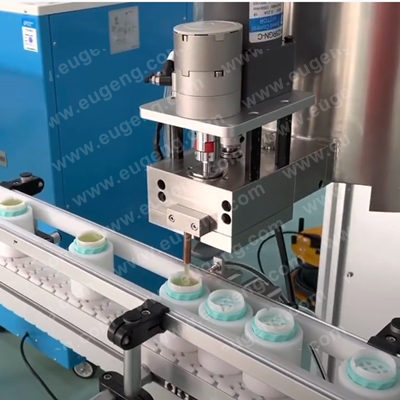

Single nozzle gear pump filling system

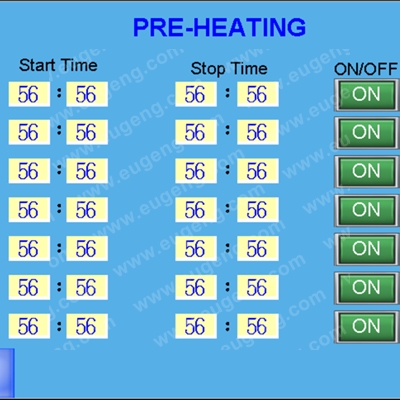

Preheating function,preheating time and temperature can be set as needs
Eugeng is a professional and creative company of machinery for cosmetics in Shanghai China. We design,manufacturer and export cosmetics machines, such as lip gloss mascara & eyeliner filling machines, cosmetics pencil filling machines, lipstick machines, nail polish machines,powder press machines, baked powder machines, labelers, case packer and other cosmetics machinery and so on.
