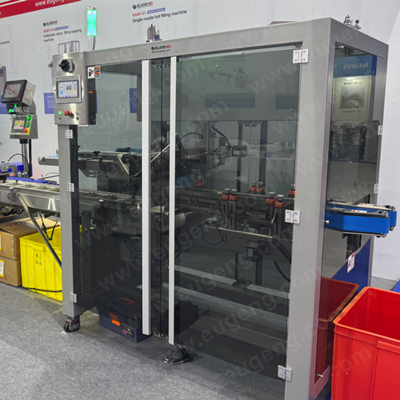

Full Automatic Lip Gloss Mascara Filling Capping Production line
Full Automatic Lip Gloss Mascara Filling Capping Production Line Working Process:
1. Automatic loading empty tube into puck holder
2. Automatic single nozzle servo filling,filling volume&speed adjustable
3.Automatic loading wiper and pressing wiper
4.Auto wiper sensor check, no wiper, stop working
5.Automatic loading brush cap
6.Automatic servo capping,capping torque adjustable
7.Automatic discharge finished product to out conveyor
8.Automatic weight checker with auto rejecting function
9.Automatic 2 in 1 labeling machine for barcode and bottom labels,barcode printer as option
10. Automatic cartoning machine for different products
Automatic Lip Gloss Mascara Filling Capping Production Line Features
.Rotary type with 16pcs pucks
.1 set Movable 50L heating mixing tank,heating temperature and mixing speed adjustable
.With movable cart and tank moving up&down by motor control
.For high viscosity mascara,equipped with pressure plate to ensure liquid flow well into filling nozzle under condition of adding pressure
.Piston filling system,easy product change and color change and each strip down for cleaning
.Servo motor driving,filling while bottle moving down,ensure filling from bottom to up and no bubble and hollow in the middle of bottle
.Filling accuracy +-0.05g
.Fast connector between filling tank and filling port
.Suck back volume set function and filling stop position set function after filling to prevent dripping
.Pressing wiper by air cylinder automatically
.Servo motor control capping,capping torque can be set on the touch screen
.Automatic picking finished product and put on out conveyor
.Automatic transfer to Weight Checker Station
Cosmetic Weight Checker Machine
.Automatic rejection function with collection hopper
.Weighing accuracy 0.2-0.5g
Lip Gloss Mascara Barcode&Bottom Labeling Machine
.Sensor or Camera Check logo, correct the position and ensure label can not cover the logo
.Label sensor check, if no barcode or bottom label, any one of two,automatic rejecting in collection hopper
.Magnet pucks,single puck to change when tube change,easier adjustment
.Barcode printer as option
.For both opaque and transparent labels
Cosmetic Cartoning Machine
.Applicable carton size Length 70-230mm.Width 25-135mm Height 15-60mm
.Easier adjustment for different size cartons

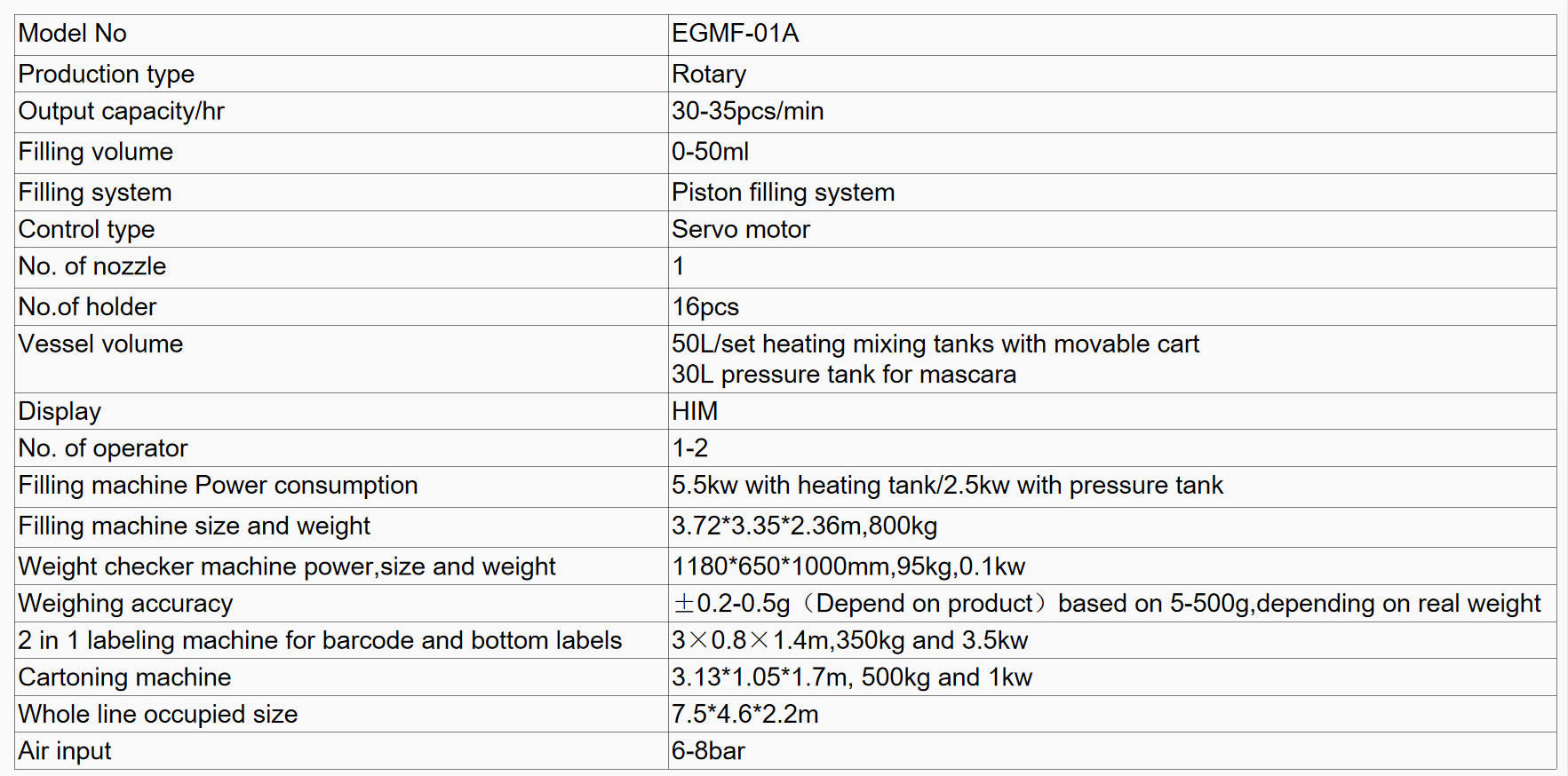

Full Automatic Lip Gloss Mascara Filling Capping Production Line Filling volume,Capacity&Filling acccuracy
.Filling volume range 0-100ml, Capacity 30-35pcs/min,Filling accuracy +-0.05g
Automatic Lip Gloss Mascara Filling Capping Production Line Components Brand
.Panasonic servo motor,Mitsubishi touch screen&PLC,Omron Relay,SMC Pneumatic components,CUH Vibrator
How to change over when different tube
.Change pucks of filling machine, customized as shape and size
.Change magnet pucks of labeling machine,customized as shape and size
Full Automatic Lip Gloss Mascara Filling Capping Production Line Optional:
.Filling Piston
.Filling tank
.Keyence Camera to check logo for labeling machine
.Barcode printer for labeling machine

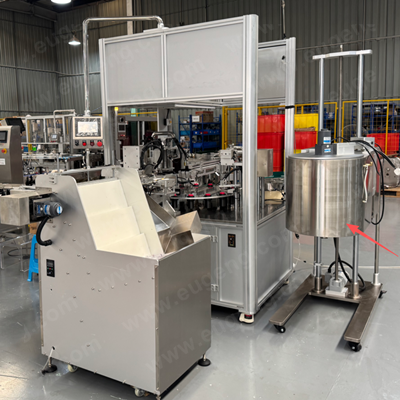

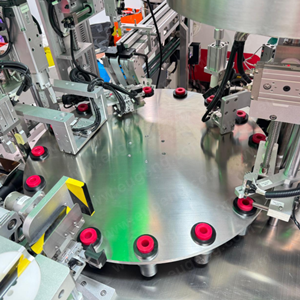

Rotary Filling Machine with 16 Pucks

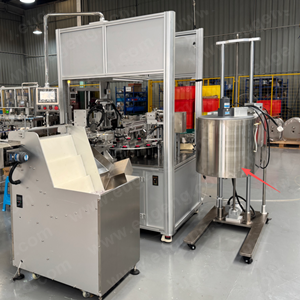

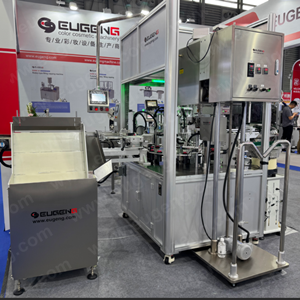

Movable 50L Filling tank,heating mixing
Automatic loading empty tube

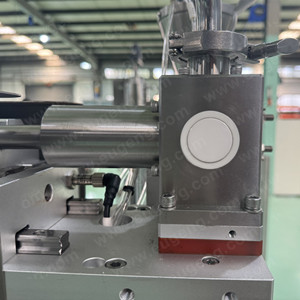

Piston filling system,driven by servo

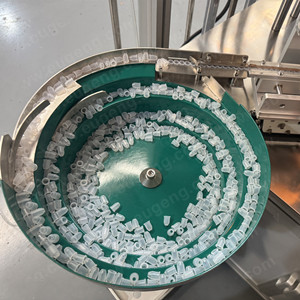

Automatic loading wiper vibrator

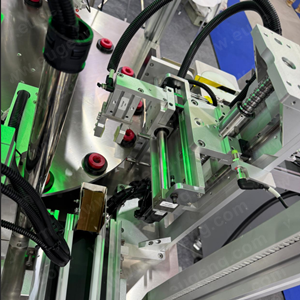

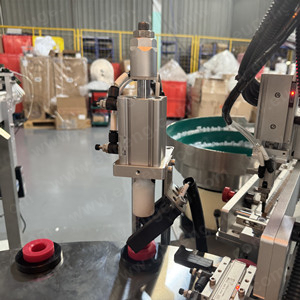

Pressing wiper with wiper sensor check

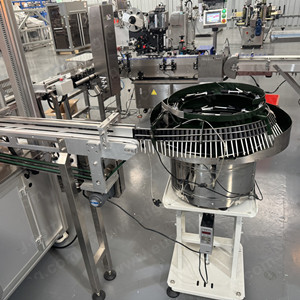

Automatic loading brush vibrator

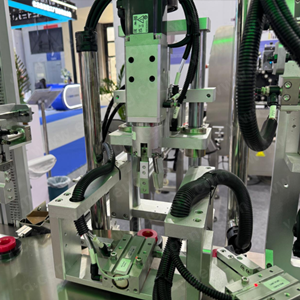

Autoamtic servo screw capping
Pick up& put filled bottle on out conveyor

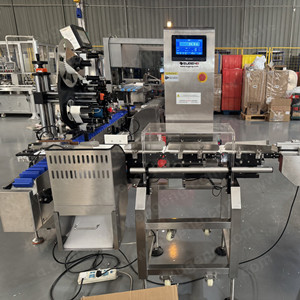

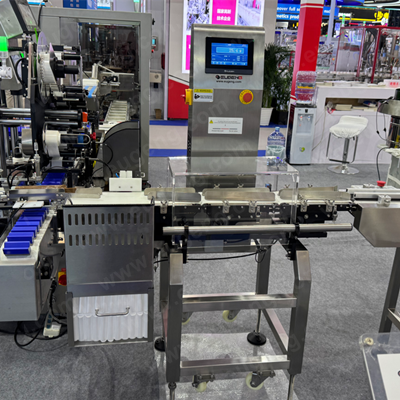

Weight checker,auto rejecting

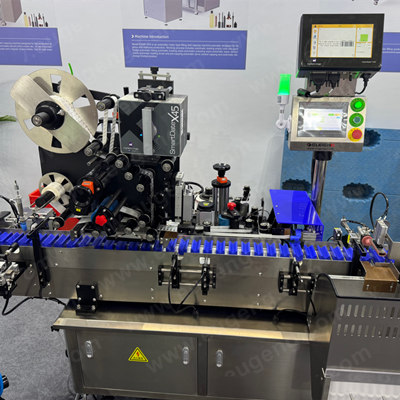

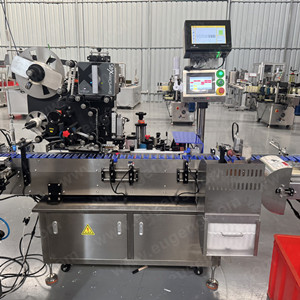

Barcode&Bottom 2 in 1 labeling

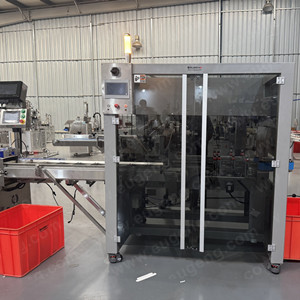

Cosmetic Cartoning Machine
