4 Nozzles Deodorant Stick Filling Cooling Production Line

Short Description:

EGHF-04A 4 Nozzles Deodorant Stick Filling Cooling Production Line is specially designed for deodorant stick product production.

Also applicable for Sunscreen stick.Solid perfume,Lip Balm,Blush stick,Petroleum jelly,Cleansing balm,Hair pomade and Hot wax products etc..

EGHF-04A 4 Nozzles Deodorant Stick Filling Cooling Production Line working process:

.400L Melting tank to melt solid bulk,automatic feeding hot liquid in filling tank by rotor pump

.4 nozzles Hot Filling Machine with 50L movable 3 layers jacket heating mixing filling tank

.10P Cooling Machine to cool hot filled bulk being solid

.Reheating to make top surface remelted after cooling shrinking, just for top filling product

.Re-cooling tunnel to cool top melted surface to make it cooled flat

.Put cap manually/Automatic loading cap as option

.Automatic pressing cap by air cylinder

.Automatic turn tube upside down machine…pick up finished product from puck and put on the discharge conveyor

.Automatic transfer on labeling conveyor

.Automatic 2 in 1 labeling machine as option, for both oval 2-side labeling and round tube wrap around labeling

.Coding machine for Date/Lot number as option




Product Detail

Product Tags

4 Nozzles Deodorant Stick Filling Cooling Production Line

EGHF-04A 4 Nozzles Deodorant Stick Filling Cooling Production Line whole set line includes 400L melting tank with rotor pump,4 nozzles hot filler machine,10P cooling machine,Reheating tubes,Re-cooling tunnel,Automatic pressing cap device,automatic turn tube upside down machine,automatic labeling machine and coding machine.

Deodorant production line
Deodorant production line 1
deodorant production line 2

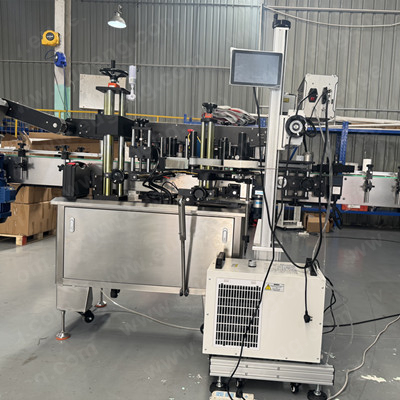

deodorant production line 3

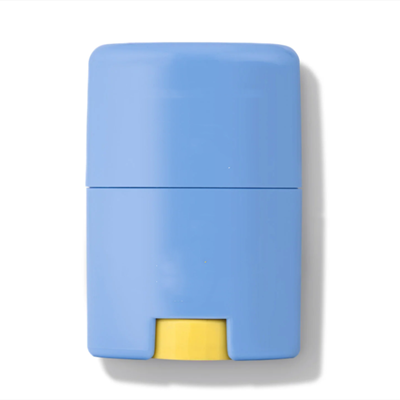

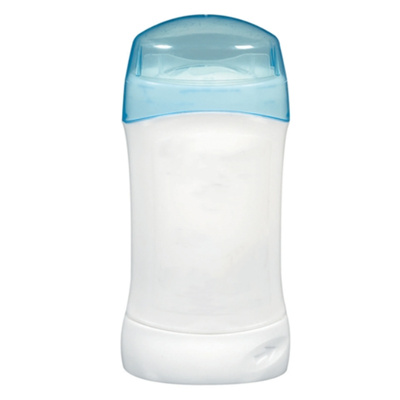

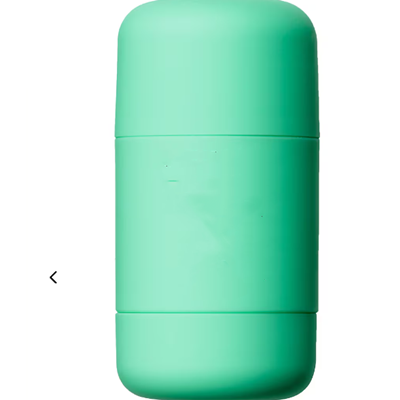

4 Nozzles Deodorant Stick Filling Cooling Proudction line Target Products

Deodorant production line
Deodorant production line 6

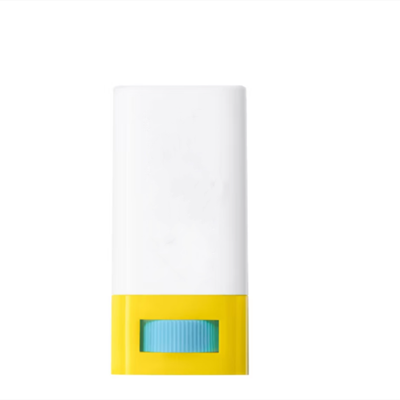

Deodorant production line 5
Deodorant production line 4

4 Nozzles Deodorant Stick Filling Cooling Production Line Features

.400L melting tank with rotor pump to feed hot liquid in filling tank

.Piston filling system, driven by servo motor, filling speed and volume adjustable on touch screen

.Movable 3 layers 50L jacket heating mixing tank,heating temperature and mixing speed adjustable

.4 Nozzles Hot Filler Machine,filling 4pcs once

.Filling volume 0-250ml

.With preheating function,preheating time and temperature can be set

.10p cooling machine,SUS304 machine cabinet,double-layer heat insulation,ensure no foggy water inside of cabinet

.R507A environment friendly refrigerant, lowest temperature can be -20 degree centigrade

4 Nozzles Deodortant Stick Filling Cooling Production Line Capacity

.30-50pcs/min

4 Nozzles Deodorant Stick Filling Cooling Production Line Components Brand

PLC&Touch screen Mitsubishi, Switch Schneider,Relay Omron,Servo motor Panasonic,Pneumatic componets SMC

Yinghuate compressor,KUBAO control system,Omron relay,Schneider Switch

4 Nozzles Deodorant Stick Filling Cooling Production Line Optional Parts

.Extra one set of Melting tank for easier bulk change

.Extra one set of movable filling tank

.Extra one set of piston with valve

.Automatic lot number or date coding machine

.Automatic capping machine

.Automatic labeling machine

4 Nozzles Deodorant Stick Filling Cooling Production Line Detailed Parts

deodorant production line_副本

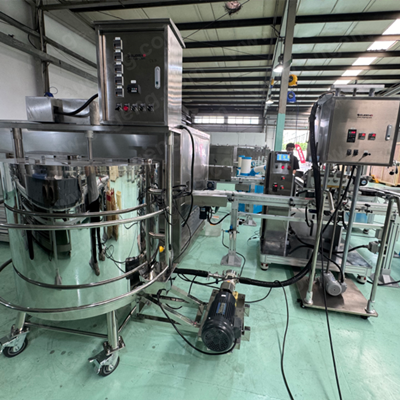

   400L melting tank with rotor pump

Deodorant production line 1_副本

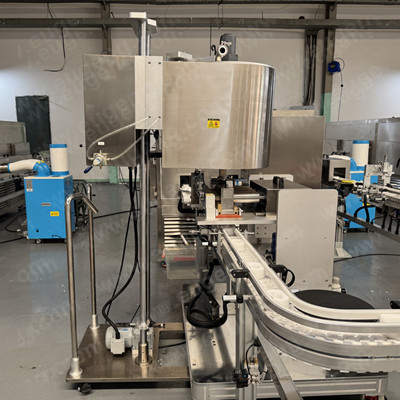

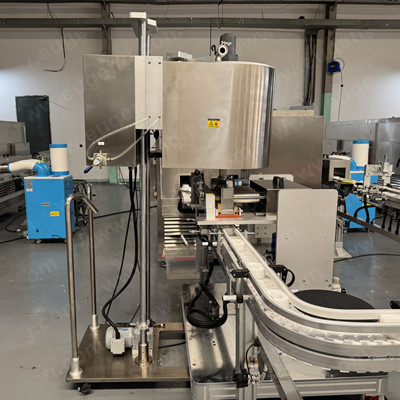

Filling machine,movable 50L filling tank

Deodorant production line 1

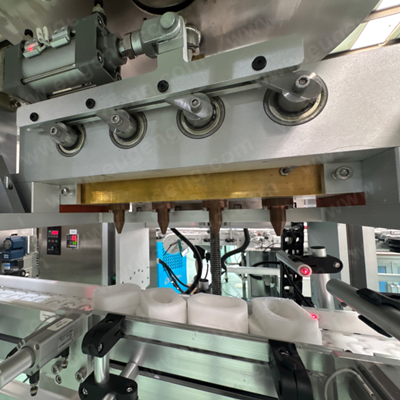

    4 Filling nozzles,filling 4pcs once

Deodorant production line 6

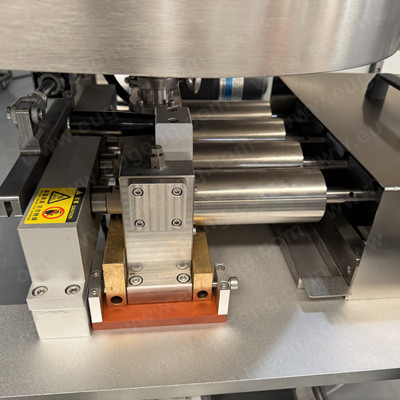

Piston filling system,driven by servo

deodorant production line 3_副本

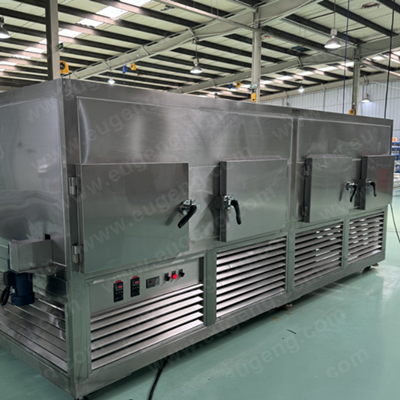

             10P Cooling machine

deodorant production line 2

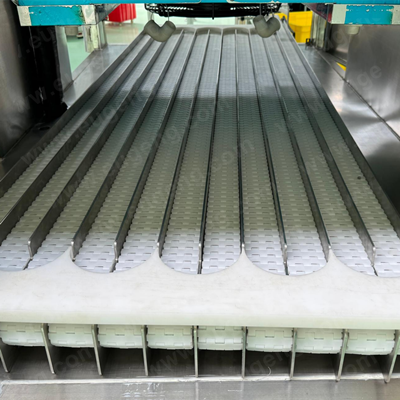

        11 Lopps in cooling chamber

Deodorant production line 8

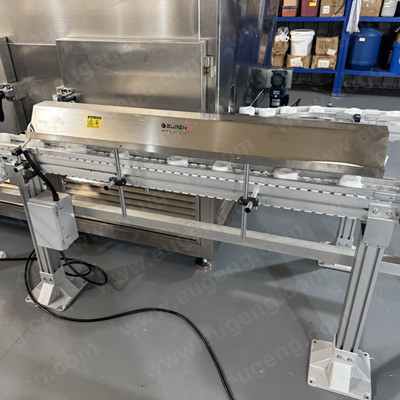

                 Reheating tubes

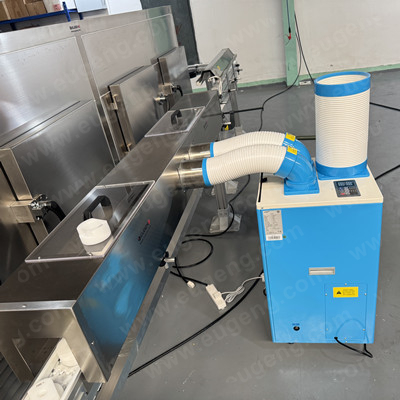

deodorant production line 7

                 Re-cooling tunnel

Deodorant production line 9

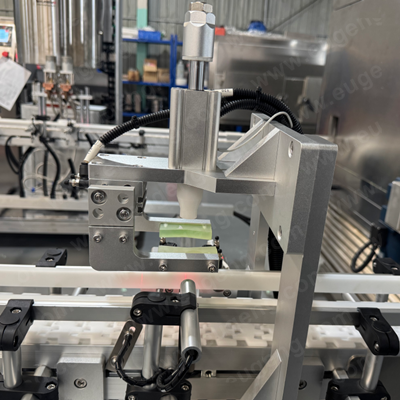

  Automatic cap pressing by air cylinder

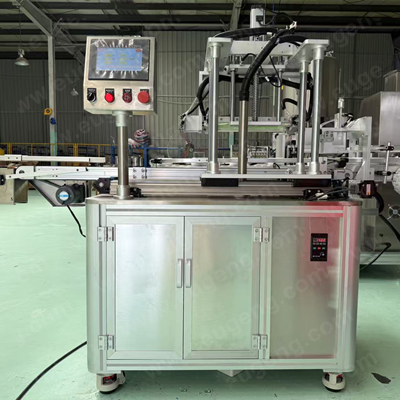

Deodorant production line 10

  Turn bottom filling tube upside down

deodorant production line 4_副本

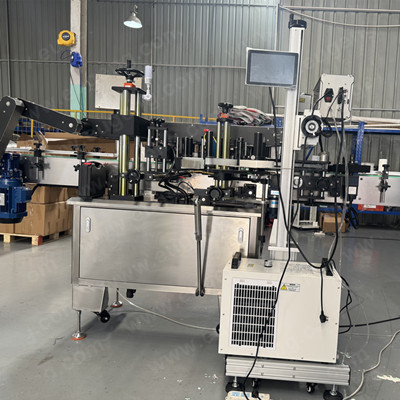

    2 in 1 Labeling machine with coding

Deodorant production line 5_副本

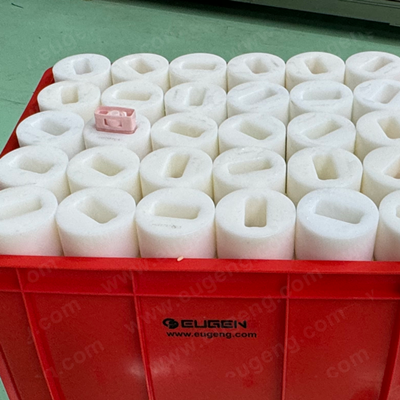

    Customize pucks for different tubes

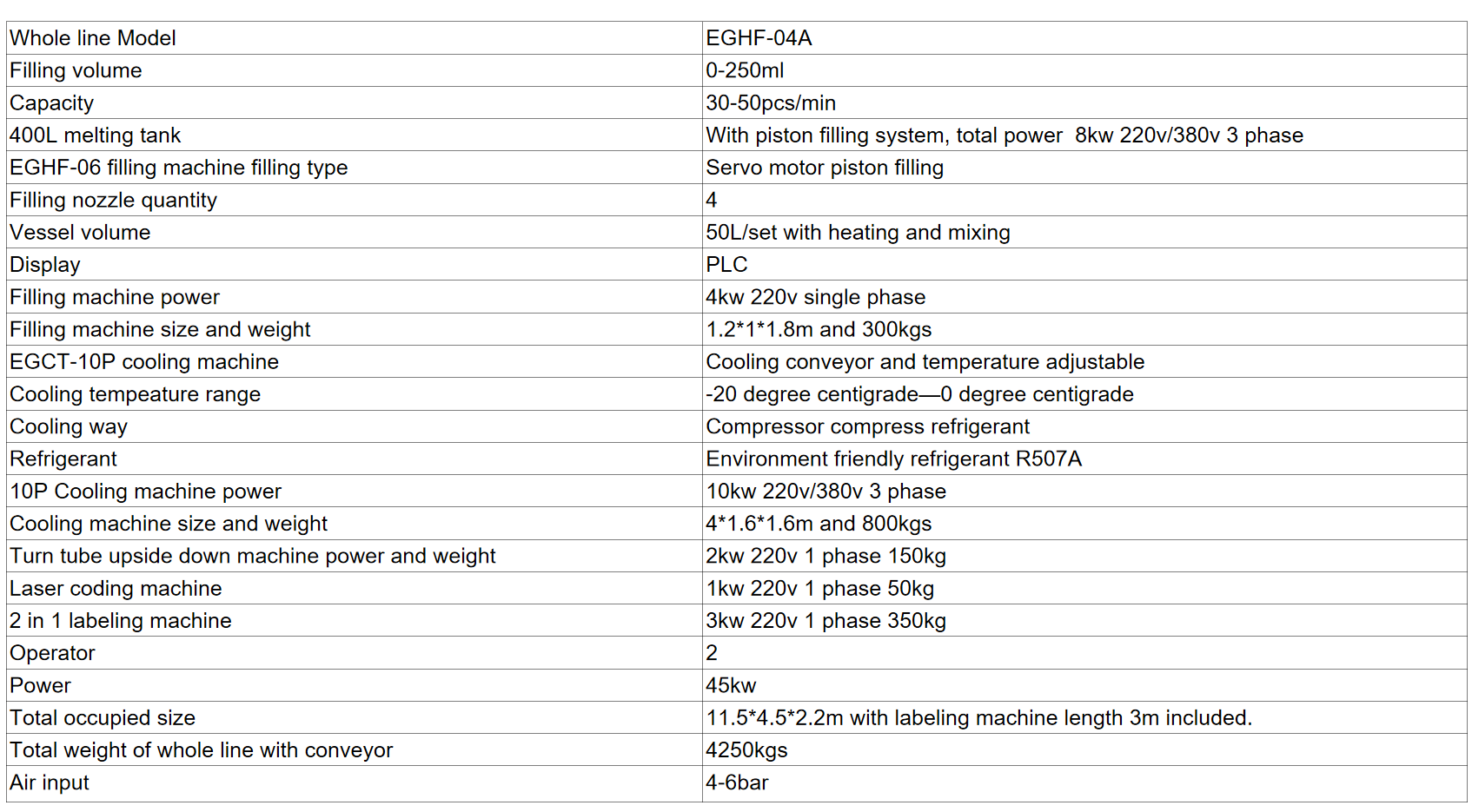

4 Nozzles Deodorant Stick Filling Cooling Production Line Specification

Deodorant production line 0

4 Nozzles Deodorant Stick Filling Cooling Production Line Video Link
