Deodorant Stick Filling Machine

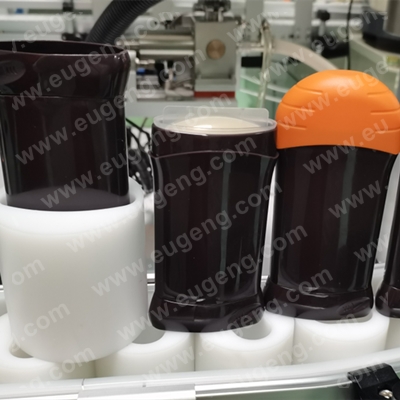

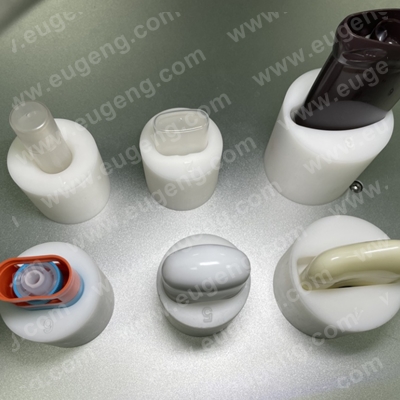

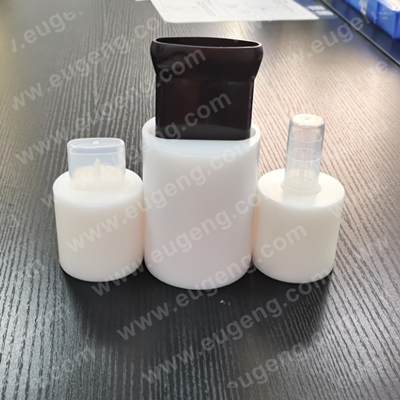

Customize puck holders as bottle shape and size

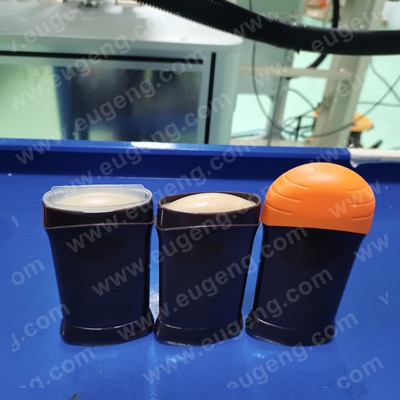

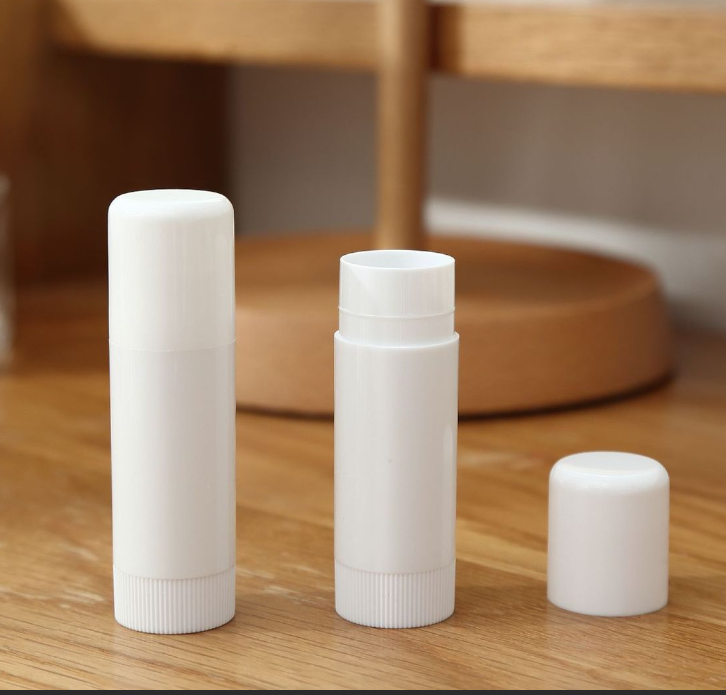

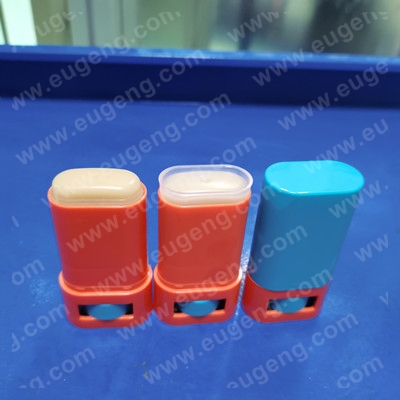

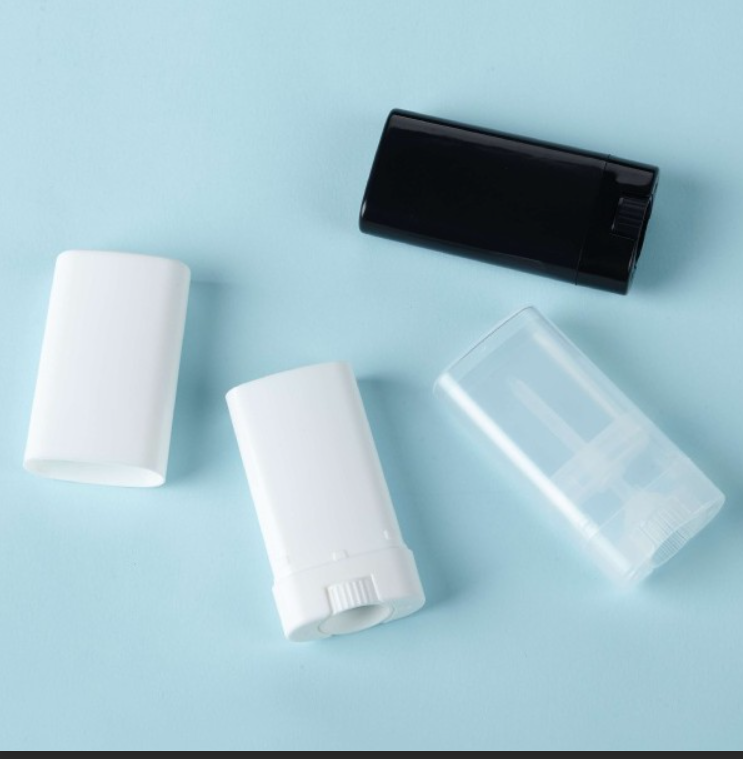

Target products:Deodorant stick,SPF stick,Balm stick,Lip balm etc..

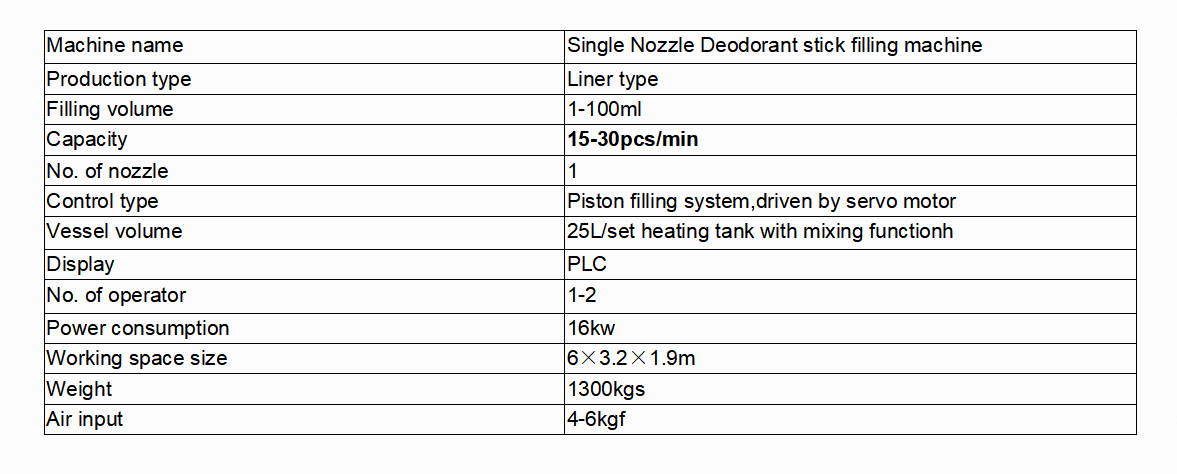

Deodorant Stick Filling Machine Filling volume
· 1-100ml
· 1 sets of 3 layers of jacketed vessels 25L with stirrer
· Single nozzle hot filling machine
. Piston filling system,driven by servo motor,filling volume set on touch screen
. Filling Accuracy +/-0.5%
. Air cooling tunnel to cool hot product surface
.Reheating system to make balm surface flat for lip balm or some SPF stick,usually for Deodorant stick product, no need reheating system
.Automatic 5P cooling machine to make hot liquid solid
. Automatic feeding cap or put cap by hand
.Automatic pressing cap or capping or finish pressing cap and capping by hand
.Automatic discharge finished products or take out finished products by hand
.Automatic labeling machine as option
Deodorant Stick Filling Machine Optional parts:
· 150L or 400L heating tank with pump to feed hot product into filling tank automatically as option
.Automatic loading cap system as option
.Automatic pressing cap or automatic capping system as option
.Automatic labeling machine as option
Deodorant Stick Filling Machine Capacity
15-30pcs/min
Deodorant Stick Filling Machine Detailed Parts

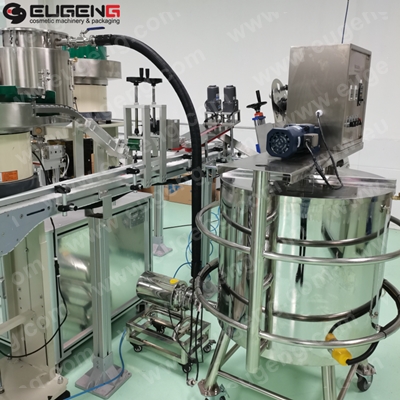

Feed hot liquid into filling tank automatically
Tunnel cooling machine with France Danfoss compressor

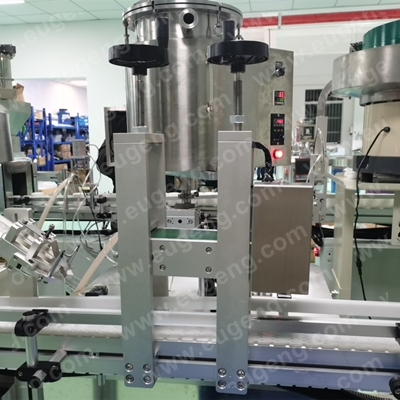

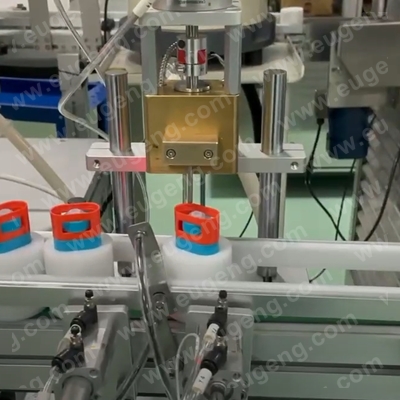

Single nozzle piston filling machine
Tunnel cooling machine with France Danfoss compressor

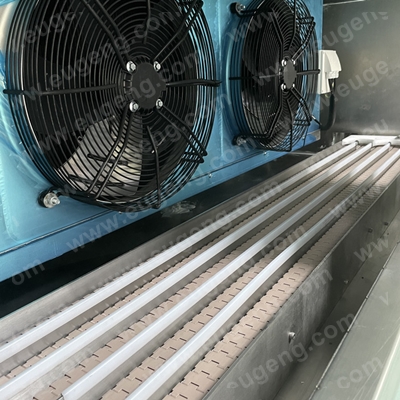

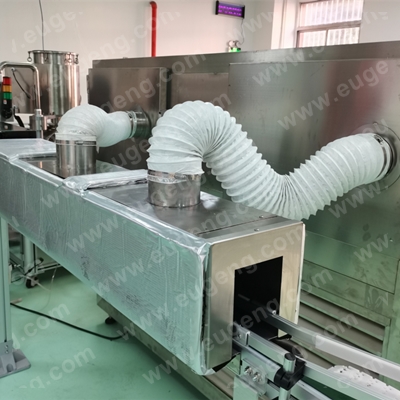

Air cooling tunnel to cool surface of hot product

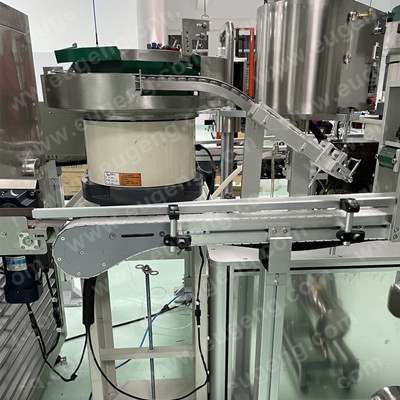

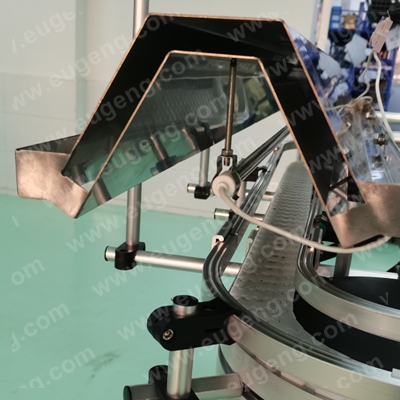

Automatic feeding cap system

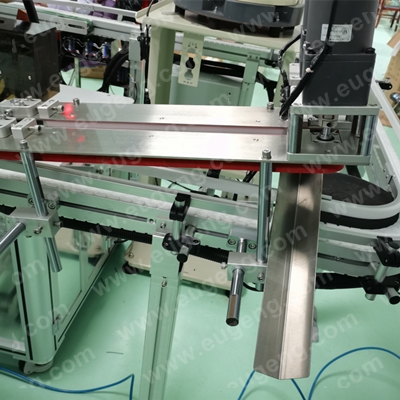

Automatic pressing cap system
Automatic discharge finished product

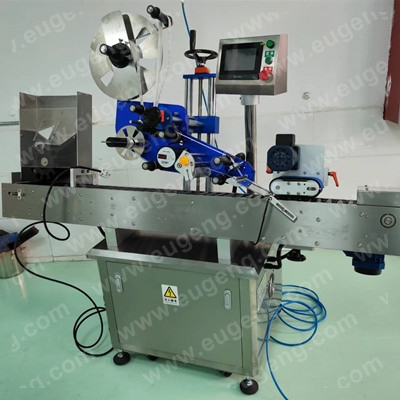

Automatic labeling machine
