2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine

Short Description:

EGHF-02  2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine Features

Wide application:

.Different products as Deodorant stick,Antiperspirant stick,Sunscreen stick,Lip balm,Solid perfume,Blush Stick,Blush cream,Liquid powder,Jelly Stick,Foundation Stick,Hair wax stick,Hair pomade,Makeup remover,Cleansing balm,Petroleum jelly ,Hot wax etc..

.Applicable different shape as Round stick,Oval stick,Round Jar,Square jar

.Filling system advantage:

.Piston filling system,driven by servo, filling speed and volume adjustable on touch screen

.Diving function,filling from bottom to up,specially for small hole stick tube and some product which easily generate air bubble

.Can set different speed and volume for two nozzles,Can use one nozzle or two nozzles as production demands

.Preheating function, set preheating time and temperature before production

Easier cleaning:

.Automatic Clean function on touch screen

.Piston filling system,only remove screws to take down for 100% cleaning

Operator:1-2

Filling Volume:0-250ml

Production capacity:20-40pcs/min

Filling accuracy:less than 50ml,+-0.05g,more than 50ml 1%

Lead time:20-25days

Components brand: Mitsubishi PLC Touch screen,Servo Motor Panasonic,Relay:Omron,Switch:Omron,Pneumatic SMC, Touching part with bulk:SUS316


Product Detail

Product Tags

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine

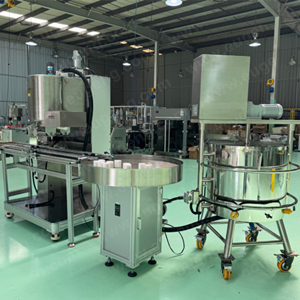

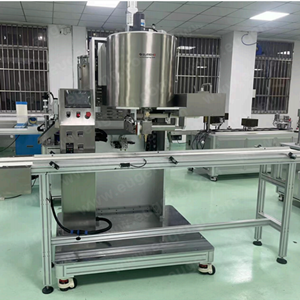

EGHF-02 2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine is a semi automatic hot filling machine with 2 filling nozzles.

.Can be equipped with 150L/400L melting tank and pump to feed hot liquid in filling tank automatically

.Piston filling system,driven by servo, filling speed and volume adjustable.

.Suitable for stick products, oval and round sticks,Jar products, round and square shapes.

.With 50L filing tank, nozzle move up&down for diving filling,driven by servo.

Deodorant stick filling machine 3_副本
Deodorant stick filling machine 0_副本
Deodorant stick filling machine 4_副本
deodorant stick filling machine 1_副本

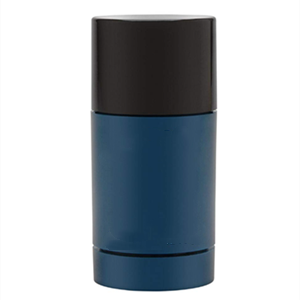

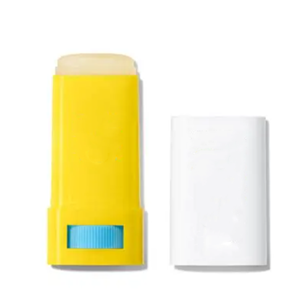

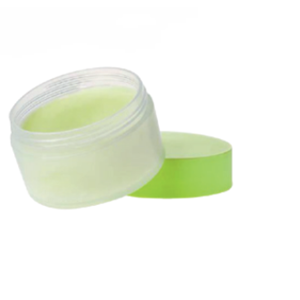

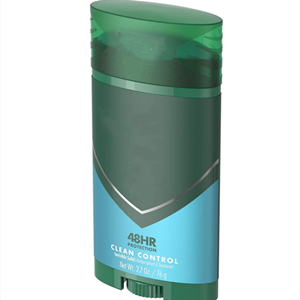

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine Target Products

Deodorant stick filling machine 1
sunscreen stick filling machine
Deodorant stick filling machine 3
ScreenShot_2026-06-12_164911_125_副本

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine Features

.Piston filling system, filling speed and volume can be set on the touch screen

.With mixer and heater,mixing speed and heating temperature adjustable

.3 layers jacket tank with 50L

.2 filling nozzles,separately controlled, can fill 1 or fill 2 as production demands

.Servo motor control filling,servo motor control filling nozzle moving up&down to achieve diving filling function

.Filling volume 0-250ml,max 500ml with filling twice

.With preheating function,preheating time and temperature can be set as needs

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine speed

.20-40pcs/min

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine components brand

PLC&Touch screen is Mitsubishi, Switch is Schneider,Relay is Omron,Servo motor is Panasonic,Pneumatic componets is SMC

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine optional parts

.150L/400L Melting tank

.Automatic feeding tube/jar table

.Automatic cooling machine

.Automatic capping machine

.Automatic labeling machine

.Automatic lot number or date coding machine

.Auto shrink sleeve labeling machine

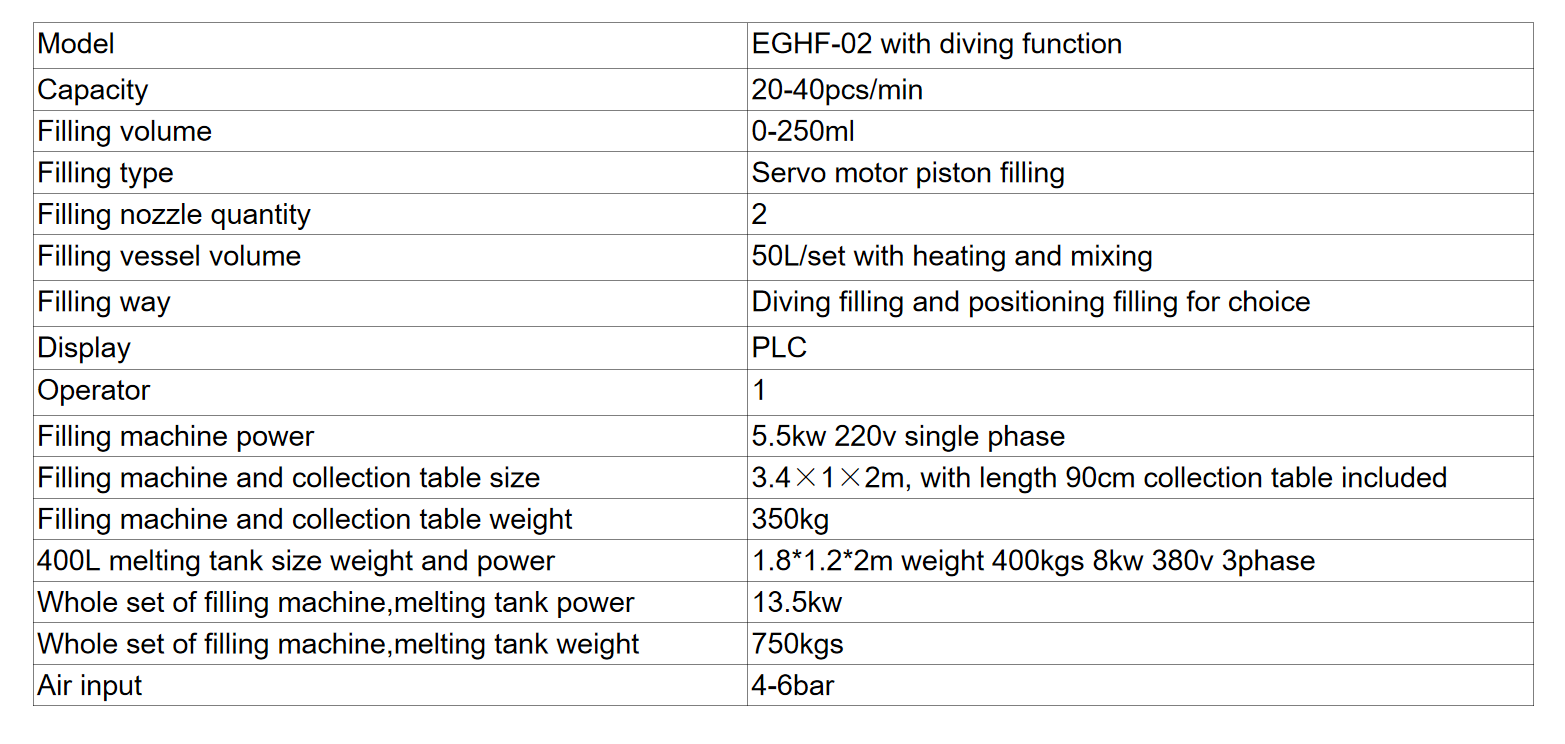

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine Specification

Deodorant stick filling machine

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine Youtube Video Link

2 Nozzles Deodorant Stick Sunscreen Stick Filling Machine Detailed Parts

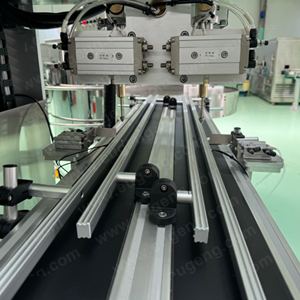

                    2 Filling nozzles

deodorant stick filling machine 1_副本

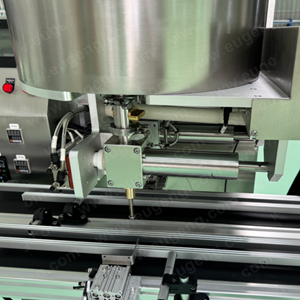

  Piston filling system,driven by servo

Deodorant stick filling machine_副本

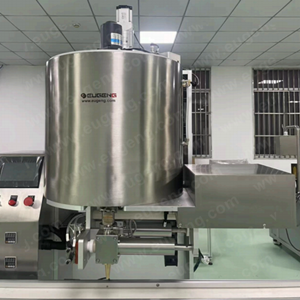

50L Filling tank with Heating&Mixing

Deodorant stick filling machine 4_副本

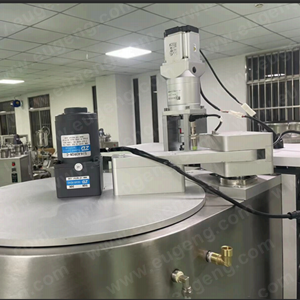

         Diving controlled by servo

Sunscreen stick filling machine 1

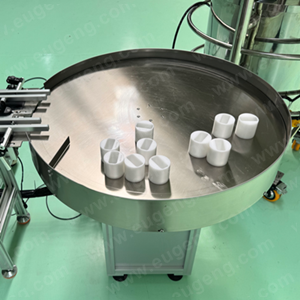

       90CM diameter collection table

Sunscreen stick filling machine 2

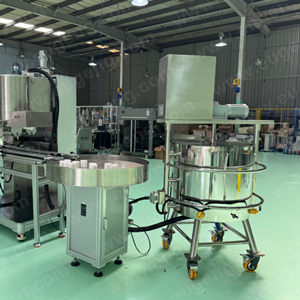

               150L/400L Melting tank

Sunscreen stick filling machine 3

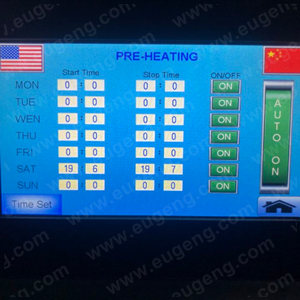

         Heating hose connection port

Sunscreen stick filling machine 7

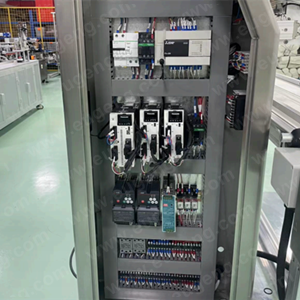

  Liquid level sensor to trigger pumping

Sunscreen stick filling machine 8
