Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line

Short Description:

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Advantage

Wide application:

.Different products as Deodorant stick,Antiperspirant stick,Sunscreen stick,Lip balm,Solid perfume,Blush Stick,Jelly Stick,Foundation Stick,Hair wax stick,Hair pomade,Makeup remover,Cleansing balm,Petroleum jelly ,Hot wax etc..

.Applicable different shape as Round stick,Oval stick,Round Jar,Square jar

Quick changeover:only chage pucks

Easier cleaning:

.Automatic Clean function on touch screen

.Piston filling system,only remove 4 screws to take down for 100% cleaning

.Movable 50L filling tank,tank up&down movable

Operator:1-2

Filling Volume:0-250ml

Production capacity:20-40pcs/min

Filling accuracy:less than 50ml,+-0.05g,more than 50ml 1%

Lead time:40-50days

With remote control system

Components brand:Mitsubishi PLC Touch screen,Servo Motor Panasonic,Relay:Omron,Switch:Omron,Pneumatic:SMC, Touching part with bulk :SUS316


Product Detail

Product Tags

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line

EGHF-02A Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line is a full automatic type hot filling line.Working process:melting tank to feed hot liquid into filling tank---optional:auto loading empty tube into puck holder---hot filling---cooling being solid---reheating for top side filling product---Recooling to cool top remelted surface for top filling product---auto loading cap---auto pressing cap---auto hold conveyor discharge on labeling conveyor---auto labeling machine---Date/Lot No. Coding machine as option

Automatic deodorant stick filling machine 1_副本
Automatic deodorant stick filling machine 3_副本
Automatic deodorant stick filling machine 5_副本

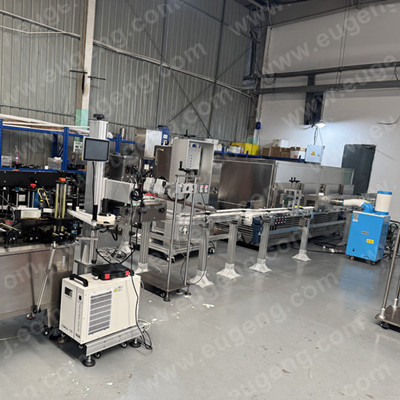

Automatic deodorant stick filling machine 4_副本

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Target Products

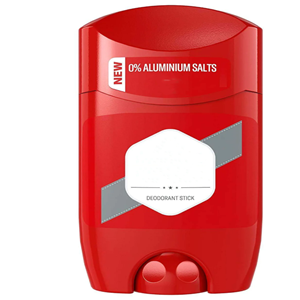

2 Automatic deodorant stick filling machine

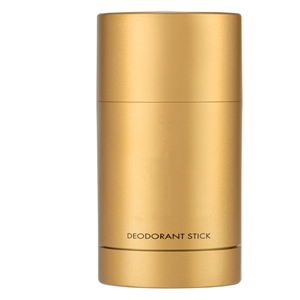

3 Automatic deodorant stick filling machine

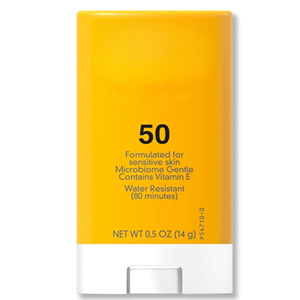

4 Automatic deodorant stick filling machine

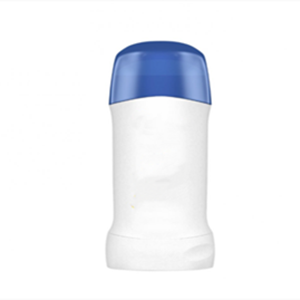

1 Automatic deodorant stick filling machine

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Features

.400L melting tank with pump to feed hot liquid into filling tank directly

.Piston filling system, driven by servo motor, filling speed and volume can be set on the touch screen

.Filling machine has 3 layers 50L jacket heating mixing tank,heating temperature and mixing speed adjustable

.2 filling nozzles,filling 2 pcs once

.Filling volume 0-250ml

.With preheating function,preheating time and temperature can be set as needs

.10p cooling machine,SUS304 machine cabinet,double-layer heat insulation,ensure no foggy water inside of cabinet

.R507 environment friendly refrigerant, lowest temperature can be -15 degree centigrade

 Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Capacity

.20-40pcs/min

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Components Brand

PLC&Touch screen is Mitsubishi, Switch is Schneider,Relay is Omron,Servo motor is Panasonic,Pneumatic componets is SMC

Yinghuate compressor,KUBAO control system,Omron relay,Schneider Switch

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Option Parts

.Extra one set of piston with valve

.Automatic lot number or date coding machine

.Automatic capping machine

.Automatic labeling machine

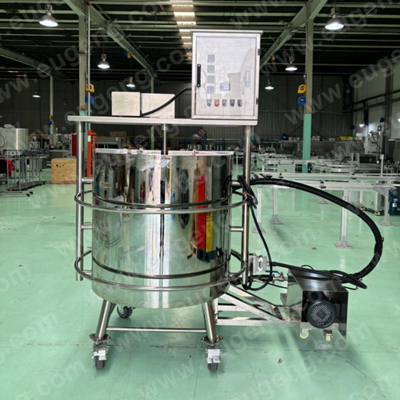

                   400L melting tank

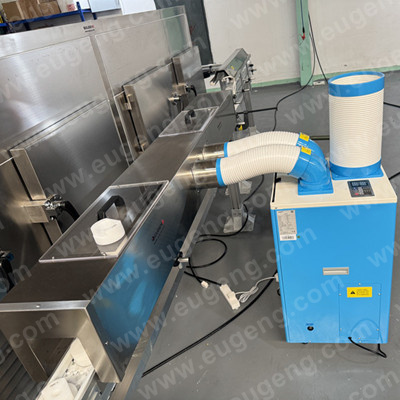

Deodorant stick filling machine

     Melting tank&Filling tank with pump

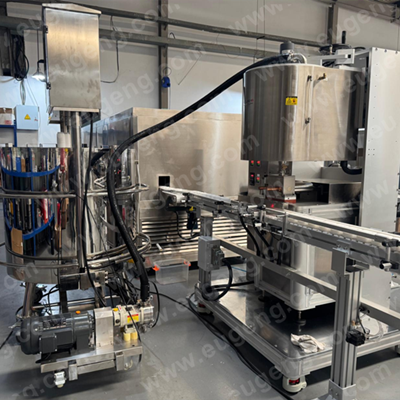

Automatic deodorant stick filling machine 1

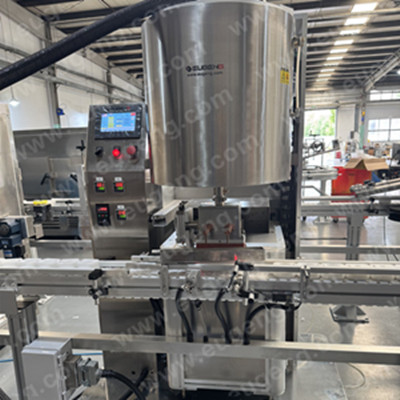

       2 Filling nozzles,diving as option

Automatic deodorant stick filling machine

                     50L Filling tank

deo stick hot filling machine 07

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Detailed Parts

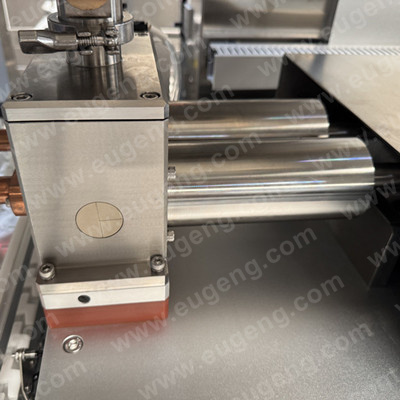

Servo control piston,volume adjustable

Deodorant stick filling line

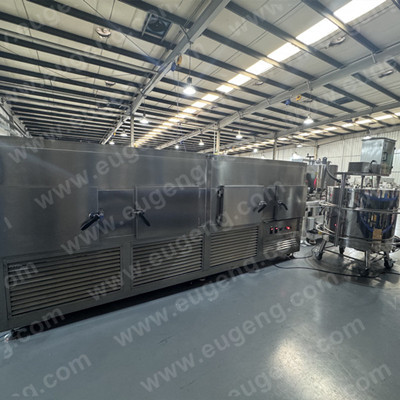

                10P Cooling machine

Automatic deodorant stick filling machine 5

        Reheating for top filling product

Deodorant filling line

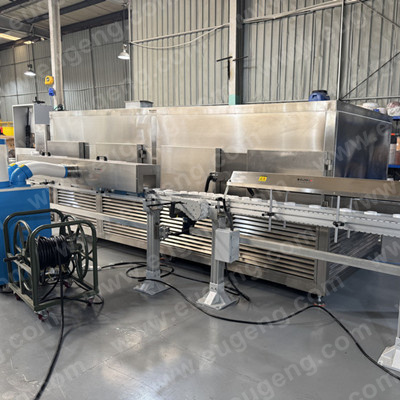

     Recooling to cool top melted surface

Deodorant stick filling machine

               Automatic press cap

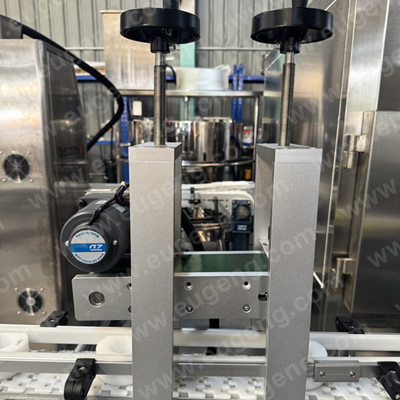

Deodorant making machine

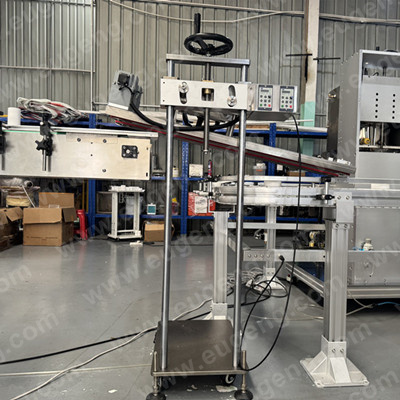

Auto depucker separate tube from puck

Deodorant filling machine

    2 in 1 Labeling for oval&round tubes

deodorant stick production line

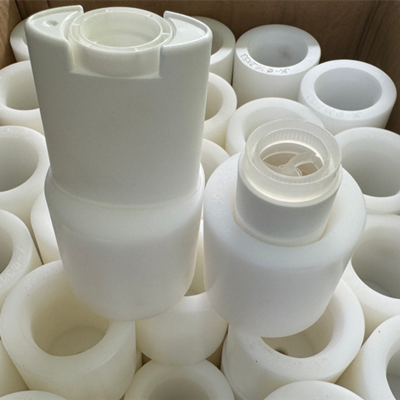

Customize pucks based on shape&size

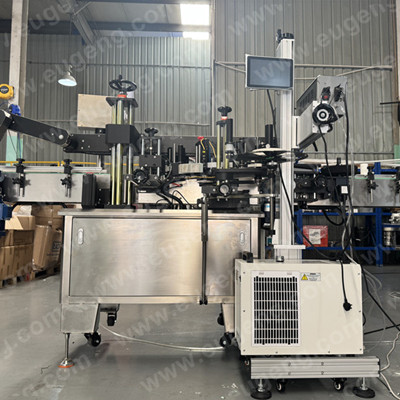

Deodorant stick production line

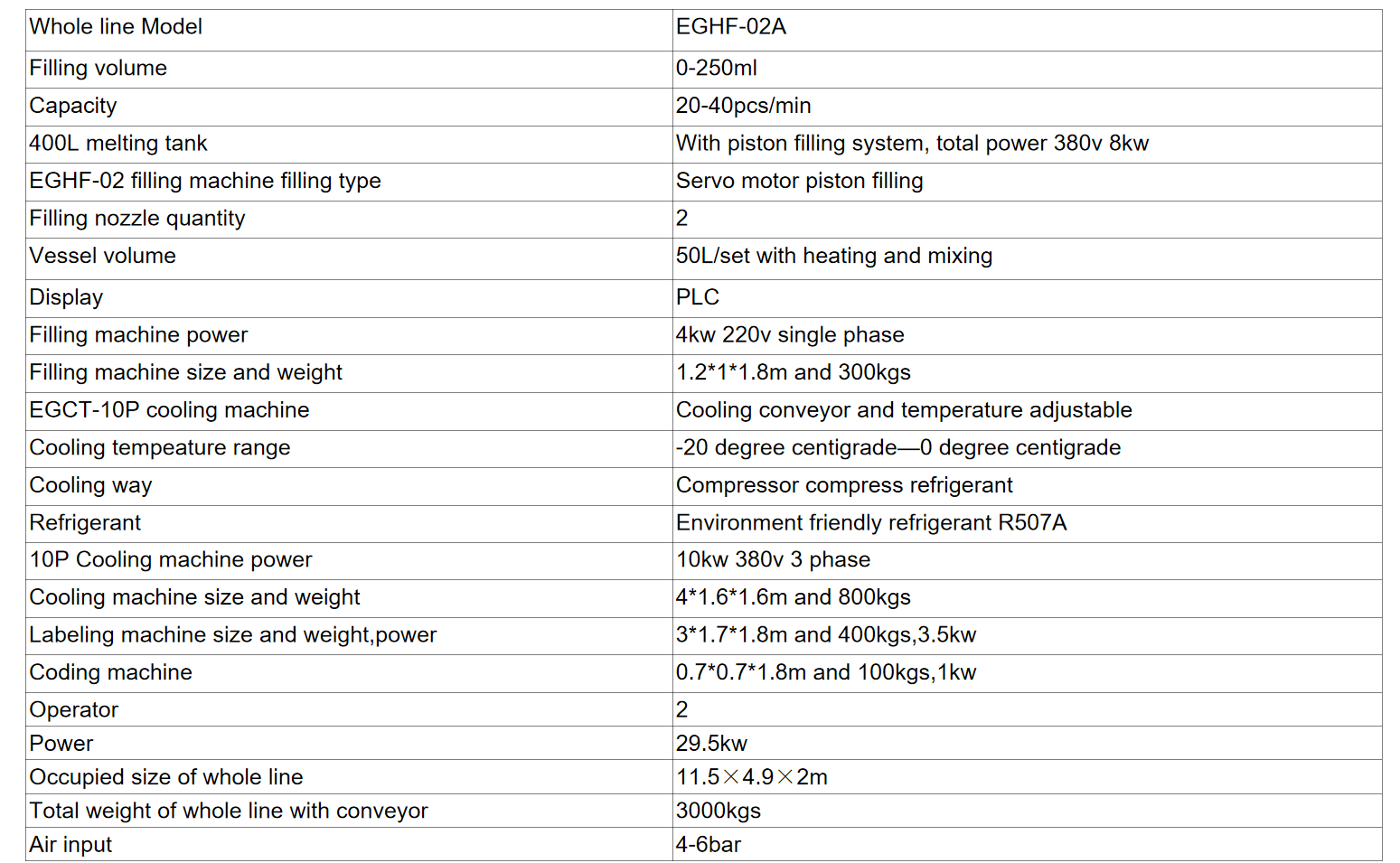

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Specification

Automatic deodorant stick filling machine

Automatic 2 Nozzles Deodorant Stick Filling Machine Production Line Video Link
