6 Nozzles Automatic Deodorant Stick Filling Cooling Machine
EGHF-06A 6 Nozzles Automatic Deodorant Stick Filling Cooling Machine working process:
.400L Melting tank to melt solid bulk,automatic feeding hot liquid in filling tank by rotor pump
.6 nozzles Hot Filling Machine with 50L movable 3 layers jacket heating mixing filling tank
.10P Cooling Machine to cool hot filled bulk being solid
.Reheating to make top surface remelted after cooling shrinking, just for top filling product
.Re-cooling tunnel to cool top melted surface to make it cooled flat
.Put cap manually/Automatic loading cap as option
.Automatic pressing cap by air cylinder
.Automatic turn tube upside down machine...pick up finished product from puck and put on the discharge conveyor
.Automatic transfer on labeling conveyor
.Automatic 2 in 1 labeling machine as option, for both oval 2-side labeling and round tube wrap around labeling
.Coding machine for Date/Lot number as option
.400L melting tank with rotor pump to feed hot liquid in filling tank
.Piston filling system, driven by servo motor, filling speed and volume adjustable on touch screen
.Movable 3 layers 50L jacket heating mixing tank,heating temperature and mixing speed adjustable
.6 Nozzles Hot Filler Machine,filling 6pcs once
.Filling volume 0-250ml
.With preheating function,preheating time and temperature can be set
.10p cooling machine,SUS304 machine cabinet,double-layer heat insulation,ensure no foggy water inside of cabinet
.R507A environment friendly refrigerant, lowest temperature can be -20 degree centigrade
6 Nozzles Automatic Deodorant Stick Filling Cooling Machine Capacity
.40-60pcs/min
6 Nozzles Automatic Deodorant Stick Filling Cooling Machine Components Brand
PLC&Touch screen Mitsubishi, Switch Schneider,Relay Omron,Servo motor Panasonic,Pneumatic componets SMC
Yinghuate compressor,KUBAO control system,Omron relay,Schneider Switch
6 Nozzles Automatic Deodorant Stick Filling Cooling Machine Optional Parts
.Preheating for empty tube/container
.Extra one set of Melting tank for easier bulk change
.Extra one set of movable filling tank
.Extra one set of piston with valve
.Automatic lot number or date coding machine
.Automatic capping machine
.Automatic labeling machine
6 Nozzles Automatic Deodorant Stick Filling Cooling Machine Detailed Parts

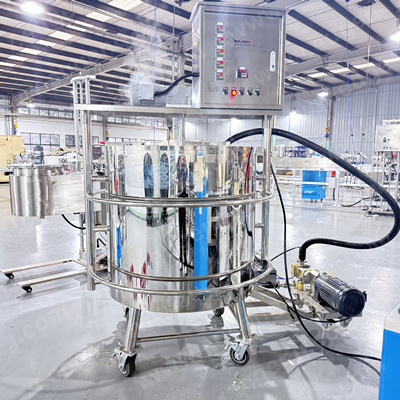

Melting tank,Pump&Filling tank
10P cooling machine
Movable 50L filling tank
11 Loops inside of cooling chamber

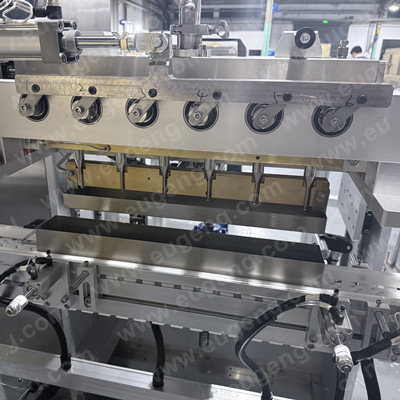

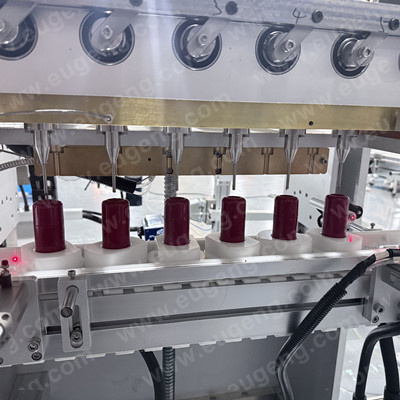

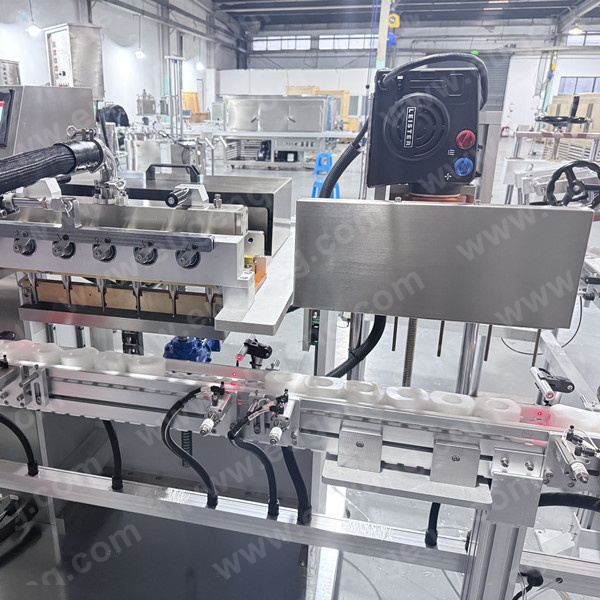

6 Filling Nozzles,fill 6pcs once
Reheating for top filling products
Preheating empty tube as option
Re-cooling for top filling products
Automatic press cap by air cylinder
Turn tube upside down as option
Round&Oval tube labeling machine

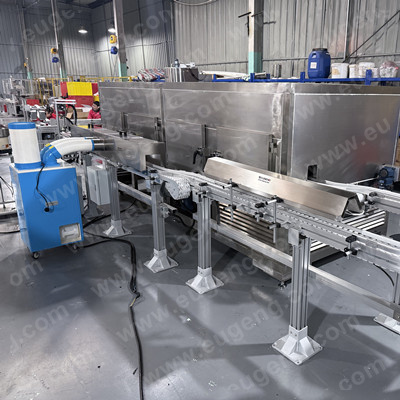

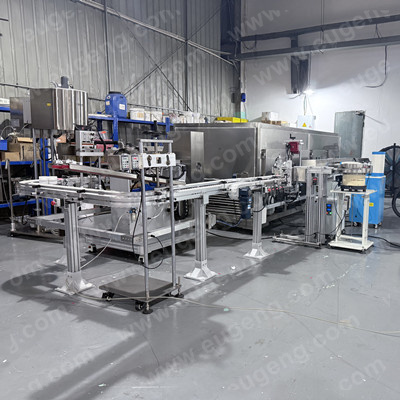

Whole set stick filling production line
