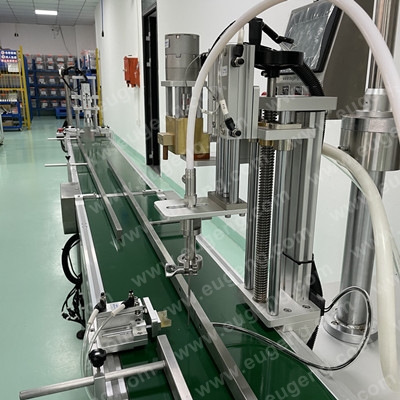

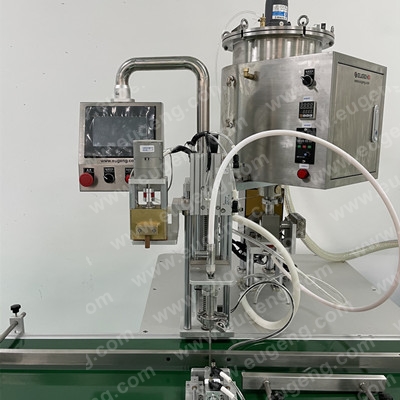

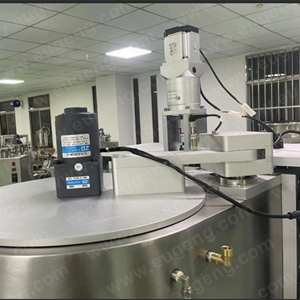

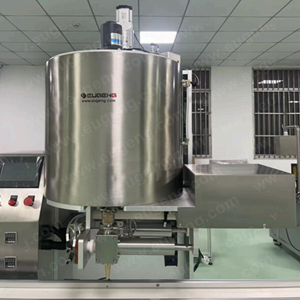

Cosmetic Hot Filling Machine

Short Description:

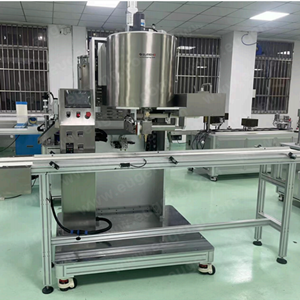

EGHF-02 Cosmetic hot filling machine Features

Wide application:

widely used for wax,balm,deodorant stick,sunscreen stick,petroleum jelly,hair pomade,blush stick, foundation stick,eyebrow pomade,makeup remover,cleansing balm,balsam,eyeliner cream,liquid powder,eyeshadow cream,blush cream etc..

EGHF-02 Cosmetic hot filling machine Filling system advantage:

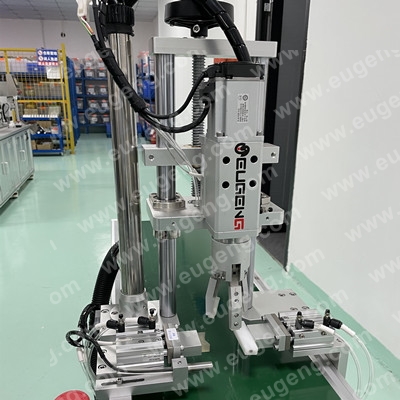

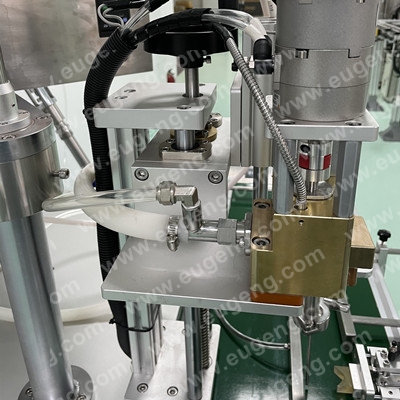

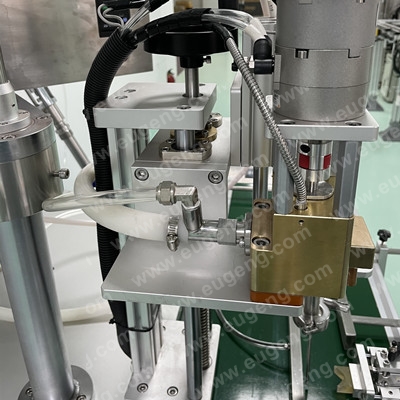

.Adopts piston filling system,driven by servo,filling volume and speed are adjustable.

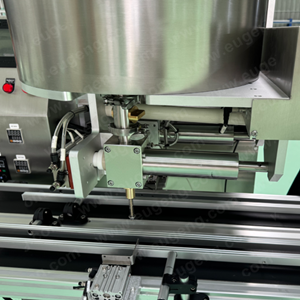

.Diving function,filling from bottom to up,specially for small hole stick tube and some product which easily generate air bubble

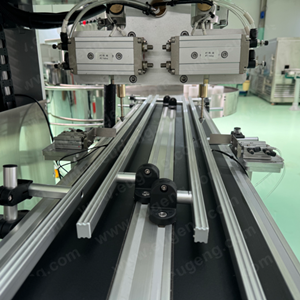

.Can set different speed and volume for two nozzles,Can use one nozzle or two nozzles as production demands

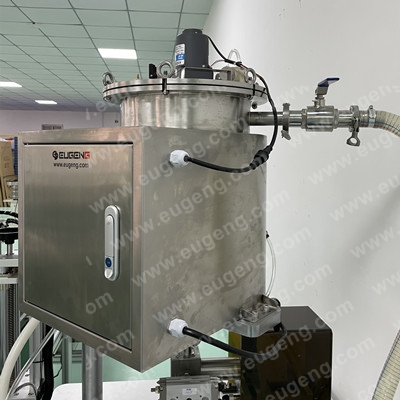

.Preheating function, set preheating time and temperature before production

Easier cleaning:

.Automatic Clean function on touch screen

.Piston filling system,only remove screws to take down for 100% cleaning

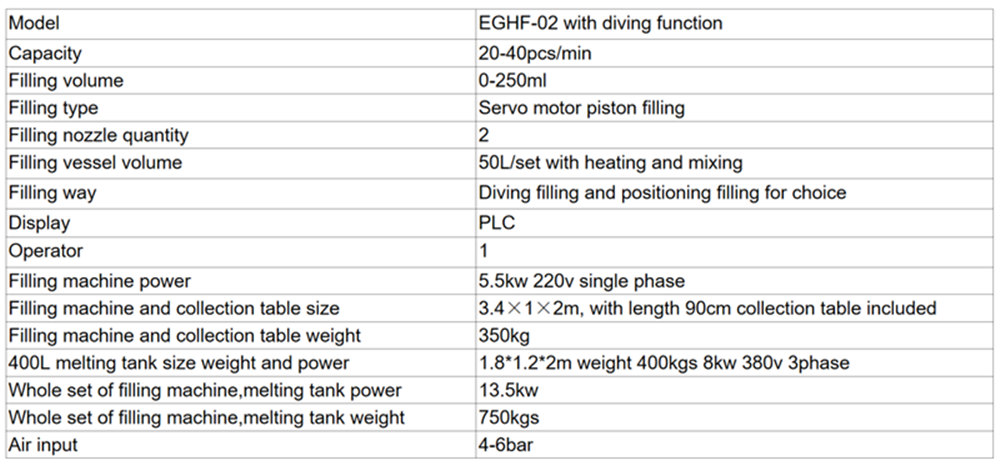

Operator:1-2

Filling Volume:0-250ml

Production capacity:20-40pcs/min

Filling accuracy:less than 50ml,+-0.05g,more than 50ml 1%

Lead time:20-25days

Components brand: Mitsubishi PLC Touch screen,Servo Motor Panasonic,Relay:Omron,Switch:Omron,Pneumatic SMC, Touching part with bulk:SUS316
